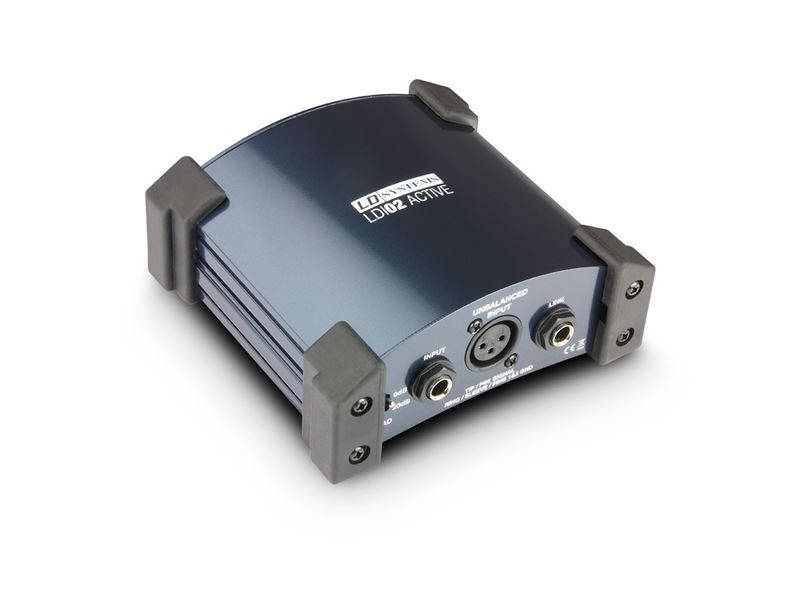

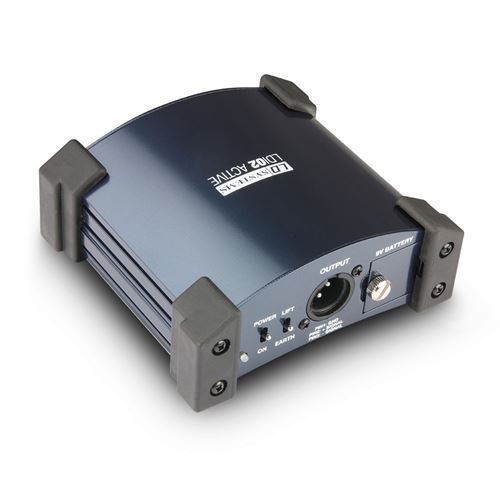

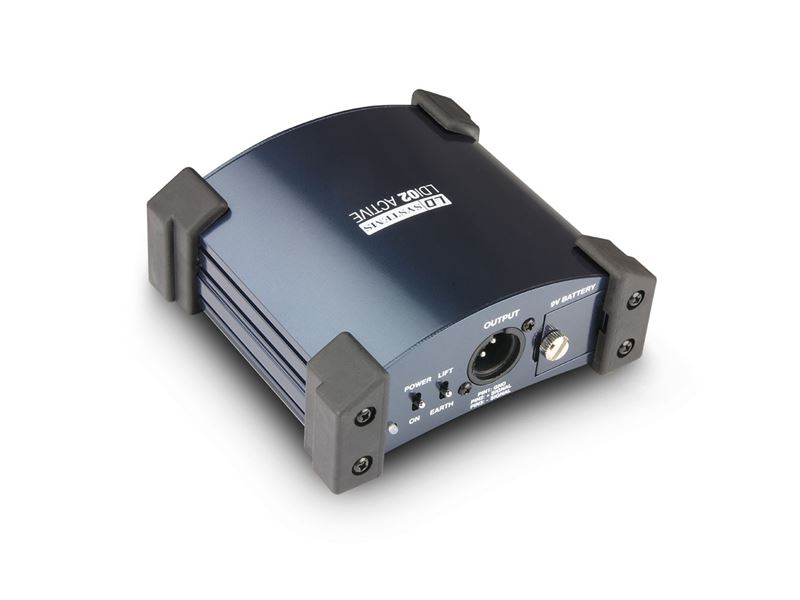

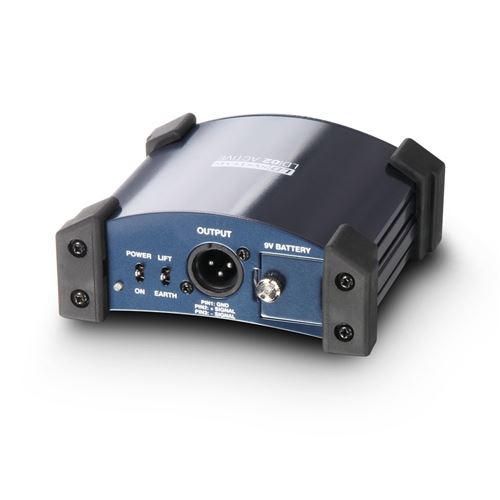

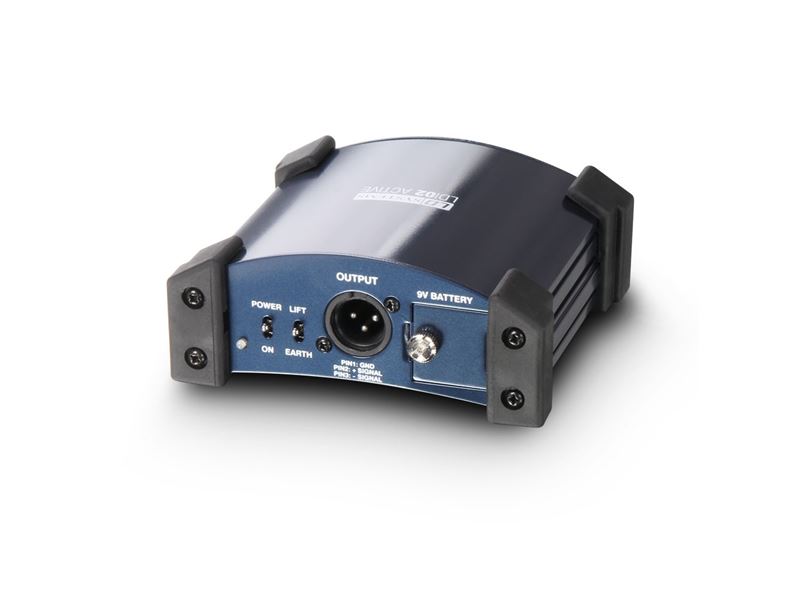

Active DI box in a sturdy metal housing (aluminium/steel) with protective corners, silver-blue metallic, internal battery (9 V flashes during operation) is switched off automatically when phantom power is used (LED permanently illuminated), extremely low battery consumption. Battery: 9 V block (not included).
| Product type | DI Boxes |
| Channels | 1 |
| Inputs | 2 |
| Input connectors | 6.3 mm jack, XLR |
| Max. input level | + 10 / + 30 dBu dBu |
| Input impedance | 1 M Ohm(s) |
| Outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | XLR |
| Frequency response | 20 - 20.000 |
| Total Harmonic Distortion (THD) | < 0.0015 % @ 1 kHz |
| Indicators | Power |
| Controls | ground lift, Power |
| Operating voltage | +48 V phantom power, 9 V block |
| Cabinet material | Metal |
| Cabinet surface | painted |
| Width | 135 mm |
| Depth | 128 mm |
| Height | 53 mm |
| Weight | 0,645 kg |
