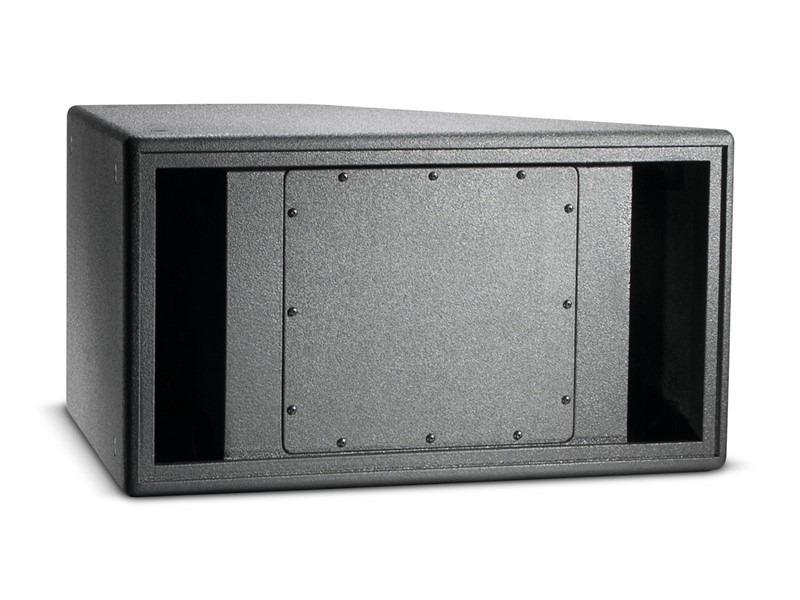

JBL PD5000 Series 1600 Watts RMS Dual 12" High Power Low Frequency Full Range Loudspeaker (Black)

PD5122

JBL Professional

Whatsapp for enquiry Email for enquiry






The PD5122 is intended for use as a flown or ground supported, high power low frequency module used in conjunction with mid/high-only or fullrange systems of the PD5000 series.


Features

  • Dual high power 300 mm (12 in) low frequency drivers.
  • Designed to extend LF pattern control of PD6322 systems.
  • Slot-loaded configuartion duplicates LF performance of PD6322.


Frequency Range (-10dB) 41 Hz to 1 kHz
Frequency Response (±3 dB) 49 Hz to 300 Hz
Transducer Power Rating (AES) 1600W (6400 W peak) 2 hrs
System Power Rating P1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 128 dB-SPL cont avg (134 peak)
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4 ohms in parallel-drive mode
Sensitivity 116 dB-SPL
LF Driver 2 x JBL 2206H 300 mm (12 in) VGC drivers with 100 mm (4 in) voice coil with minimal power compression and low distortion
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply
Waveguides MF: PT-N64MF 600 x 600 mm (24 x 24 in) HF: PT-H64HF 300 x 300 mm (12 x 12 in)
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 357 x 673 x 706 mm (14.1 x 26.5 x 27.8 in)
Net Weight (each) 36.4 kg (80 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
Nominal LF Driver Impedance 4 ohms in parallel-drive mode
2 x 8 ohms in discrete drive mode
