JBL VRX900 Series 875 Watts RMS 12" Powered 2-Way Line Array Loudspeaker

VRX932LAP

JBL Professional

Whatsapp for enquiry Email for enquiry

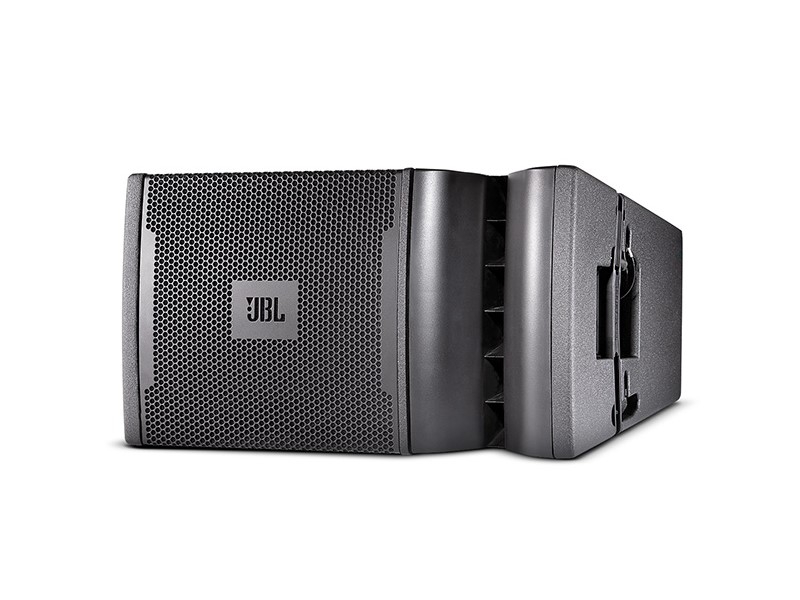

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.


Features

  • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
  • JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
  • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
  • Array Configuration Selector permits "array shading".


Power Rating 1750 Watts Peak875 Watts Continuous
Frequency Range (-10dB) 57 Hz - 20 kHz
Dimensions (H x W x D) 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
Frequency Response 75 Hz - 20 kHz (+/-3db)
Maximum SPL (1m) 136 dB SPL
Coverage Pattern 100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) LF: 750 Watts, HF: 125 Watts
DPC-2 Output Section LF: Dual-Bridged Technology™, Class D

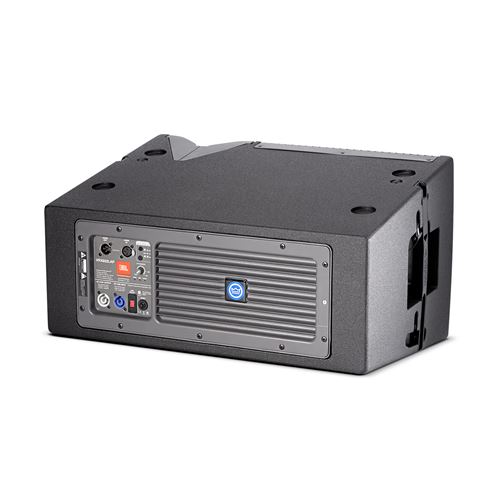

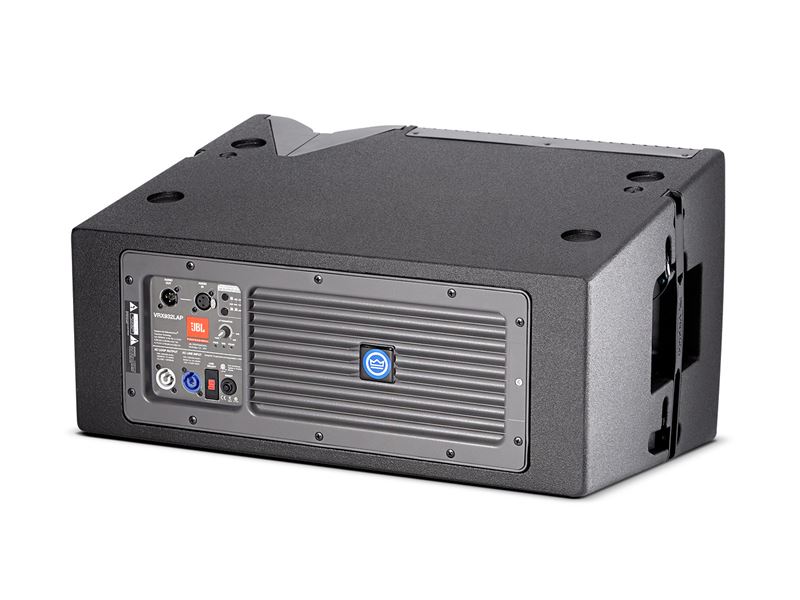

Inputs XLR with loop through
LF Driver 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver 3 x JBL 2408J, 38 mm (1.5 in)
User Controls Input Attenuator (0-16 dB)
Signal Processings DSP based, resident in Input Module
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 25/15 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Net Weight (each) 24 kg (52 lb)
Optional Accessories VRX-AF: Suspension array frame
Outputs 1 x XLR
System Type Constant Curvature 12" Two-Way Powered Line Array System
Nominal Impedance NA - amplification is integrated
