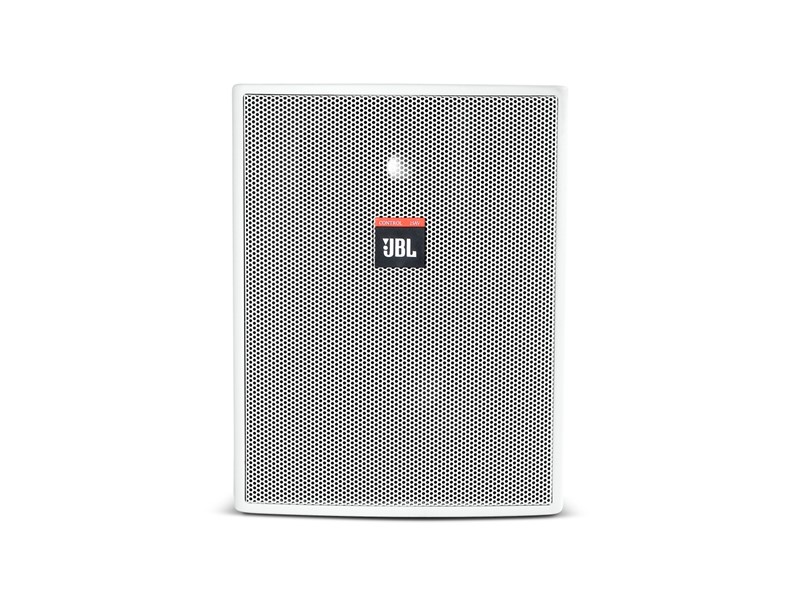

JBL Control Contractor 20 Series 100 Watts 5.25" EN54-24 Certified Premium 2-Way Compact Loudspeaker with Transformer (White)

CONTROL 25AV-LS-WH

JBL Professional

Whatsapp for enquiry Email for enquiry






The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems. This loudspeaker is EN 54-24 Compliant for life safety applications.


Features

  • UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
  • EN 54-24 Compliant for Life Safety Applications
  • Video shielded for use near video monitors.
  • Extremely smooth frequency response.
  • Aluminum Grille with Polyester Powder Coating for enduring reliability.
  • 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
  • SonicGuard™ overload protection.
  • 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
  • Includes InvisiBall® mounting hardware and sealed input panel cover.
  • Screw-down input terminals.
  • 105° x 85° high frequency horn.


Frequency Range (-10dB) 90 Hz - 20 kHz
Power Rating 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting)
Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
Sensitivity 87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode); 71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
Coverage Angle 110° x 85° (1kHz to 16kHz)
Directivity Factor (Q) 4.8 (500 Hz to 4kHz)
Directivity Index (DI) 6.5dB (500 Hz to 4kHz)
Maximum SPL (1m) 107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 89 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured
Drivers 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
HF: 20mm (.75 in) titanium coated PEI
Input Connectors Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
Enclosure ABS, (materials rated UL94-5VA)
Grille Aluminum with polyester powder coating
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
Safety Agency UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
Dimensions (H x W x D) 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight (each) 3.8 kg (8.4 lbs) ea
Shipping Weight 8.6 kg (19 lbs) pair
Included Accessories 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
Optional Accessories MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage.MTC-28/25CM to install speaker down from the ceiling.See JBL Control Contractor Bracket and Adapter Handbook.
Mounting Hardware InvisiBall™ aimable wall-mounting system included.
