* Handy and fashion outward.
* Preset 16 selectable UHF channels.* Using Lithium cell to provide long operation time.
* Transmitter with built-in condenser capsule.
* LED display on both transmitters and receivers.
* Belt-pack and neck-set wearing.
* Earphone WM-10TG for TG-10R; earhook microphone CM-801S
for TG-10T.
* 60m operation distance.
* Compatible with stationary transmitter TG-10STX and receiver TG-10SRX.

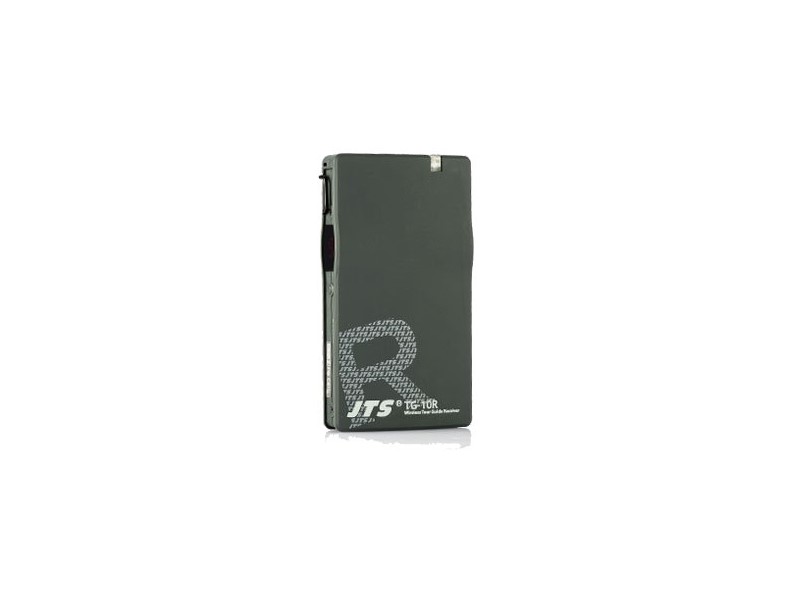

| TG-10R | |
| Model | TG-10R |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| 3x Frequency Range | 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) |
| LED Display | Channel |
| Controls | Power On/Off
Channel selection Voiume control |
| Audio Frequency Response | 40~18,000 Hz |
| Output connector | 1/8” Dummy stereo Phone Jack |
| Battery life | 14 hours typical |
| Battery | Lithium cell (3.7V, 1300mAh) |
| Dimension(mm) | 54mm(W)* 17mm(D)* 99mm(H) |
