JTS | CX-500Du/PS-510M

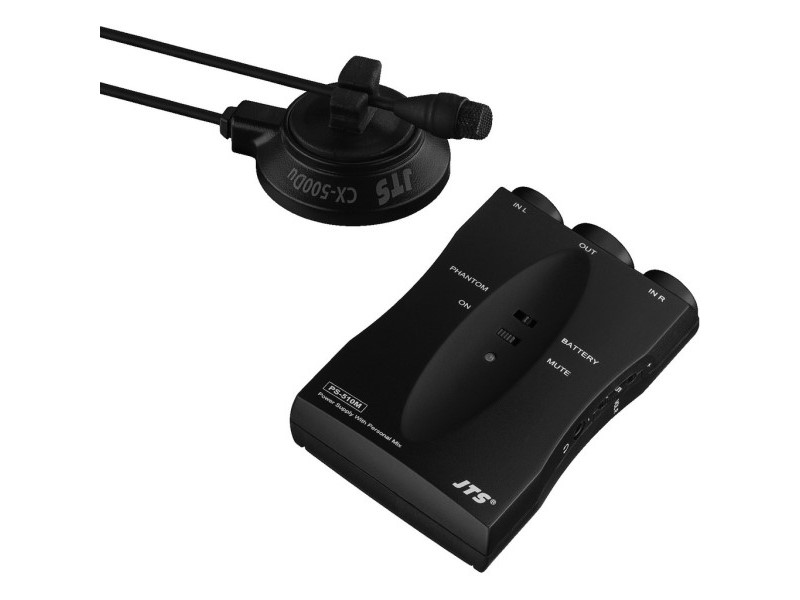

JTS CX Series Dual Transducer Instrument Microphone c/w Power Supply Unit

CX-500Du/PS-510M

JTS

Whatsapp for enquiry Email for enquiry






CX-500Du

The CX-500DU deploys dual transducers. It pushes miking boundary to a new edge. Every thrill and vibration will be royally reproduced. By moving the microphone a user can get clear and sharp, warm and spacious sound or the combination. Moreover a user can adjust the balance between the two transducers through bundled power module and find the favorite mix. The hi-tech adhesive renders the desired positioning yet no scratch or paint damage will be caused.

CX-500DU is ideal for string instruments.

PS-510M

The PS-510M is developed based on PS-500. The PS-510M provide both 9V battery power and
phantom power. It is built with earphone output for musician to monitor a preferred mix of two
microphone signals before goes to PA.


CX-500Du
Type Omni-directional Condenser
Frequency Response 20~20,000 Hz
Sensitivity (at 1,000Hz) -58±3dB*(1.25mV)*0dB=1V/μbar
Impedance 1.5kΩ
Max.SPL for 1% T.H.D. 130 dB
Signal-To-Noise Ratio 68 dB
Output Connector 4P Mini XLR
Power Supply 1-5 VDC
Current Consumption ≤0.5mA
Weight 6.5 grams (including cable)
Dimensions(mm) Ø6mm(W)*13mm(H)
Standard Accessory PS-510M

PS-510M
Frequency Response 20~20,000 Hz
Power Supply Batt. Power 9V / 12~48V Phanton Power
Current Consumption Phantom: max. 20 mA
Battery: max. 80mA with Headphone(16Ω/32Ω)
Input Impedance 5 k Ω
Output Impedance 470 Ω balanced
Input 4P Mini XLR(M) (2 channels)
Output Connector 3P XLR(M)
Headphone Jack 3.5mm
Dimension (m / m) 92mm(W)* 23mm(H)* 65mm(D)
