DAS 100 Watts RMS 12" 2-Way Fullrange Coaxial Loudspeaker with Line Transformer (Black)

OVI-12-T

DAS

Whatsapp for enquiry Email for enquiry

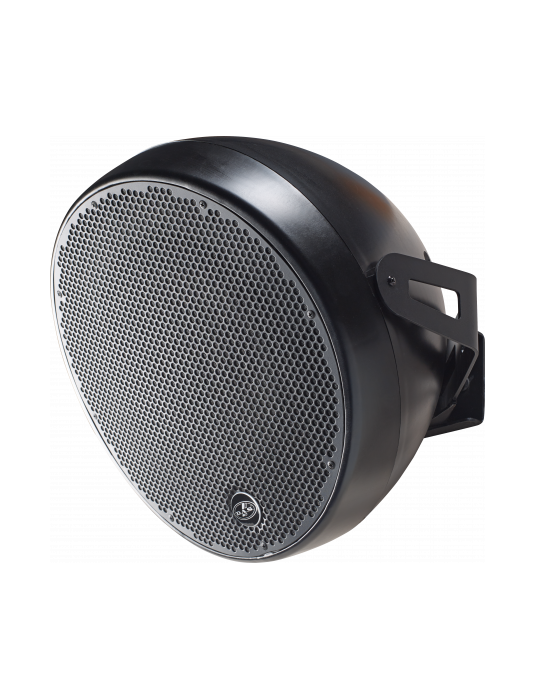

The Ovi-12 is a unique and versatile loudspeaker system. The Ovi-12, can be mounted on walls, placed in ceiling structures, or suspended as a pendant speaker. All with the clarity and power of a true two way loudspeaker system.

Comprising a 12» coaxial loudspeaker housed within a light weight polypropylene shell, the Ovi-12 can be used to deliver excellent speech intelligibility and full, rich music reproduction in spaces such as restaurants, night clubs, retail spaces, houses of worship, and convention facilities. A wide variety of accessories are available to facilitate installation.

«T» version with factory installed line transformer.


Performance
Frequency Range (-10 dB) 63 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 90º
Nominal Impedance 100 ohms
RMS Power Handling 100 W
Peak Power Handling 400 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 126 dB
Recommended Amplifier INTEGRAL-A1002
INTEGRAL-A1004
Recommended Processor DSP-226
Connectors
Audio Input Connector Spring Terminals
Audio Output Connector Spring Terminals
Enclosure
Enclosure Construction Polypropylene
Enclosure Geometry Round
Color Black
Depth 290 mm (11,4 in)
Dimensions ( H x W x D ) 500 x 505 x 290 mm
19,7 x 19,9 x 11,4 in
Net Weight 10,5 kg ( 23,2 lb )
Components
LF Driver 12MX
HF Driver M-34
