SENNHEISER XS Wireless 1 Series Single Channel Vocal Set with e 825 Characteristics

XSW 1-825

SENNHEISER

Whatsapp for enquiry Email for enquiry

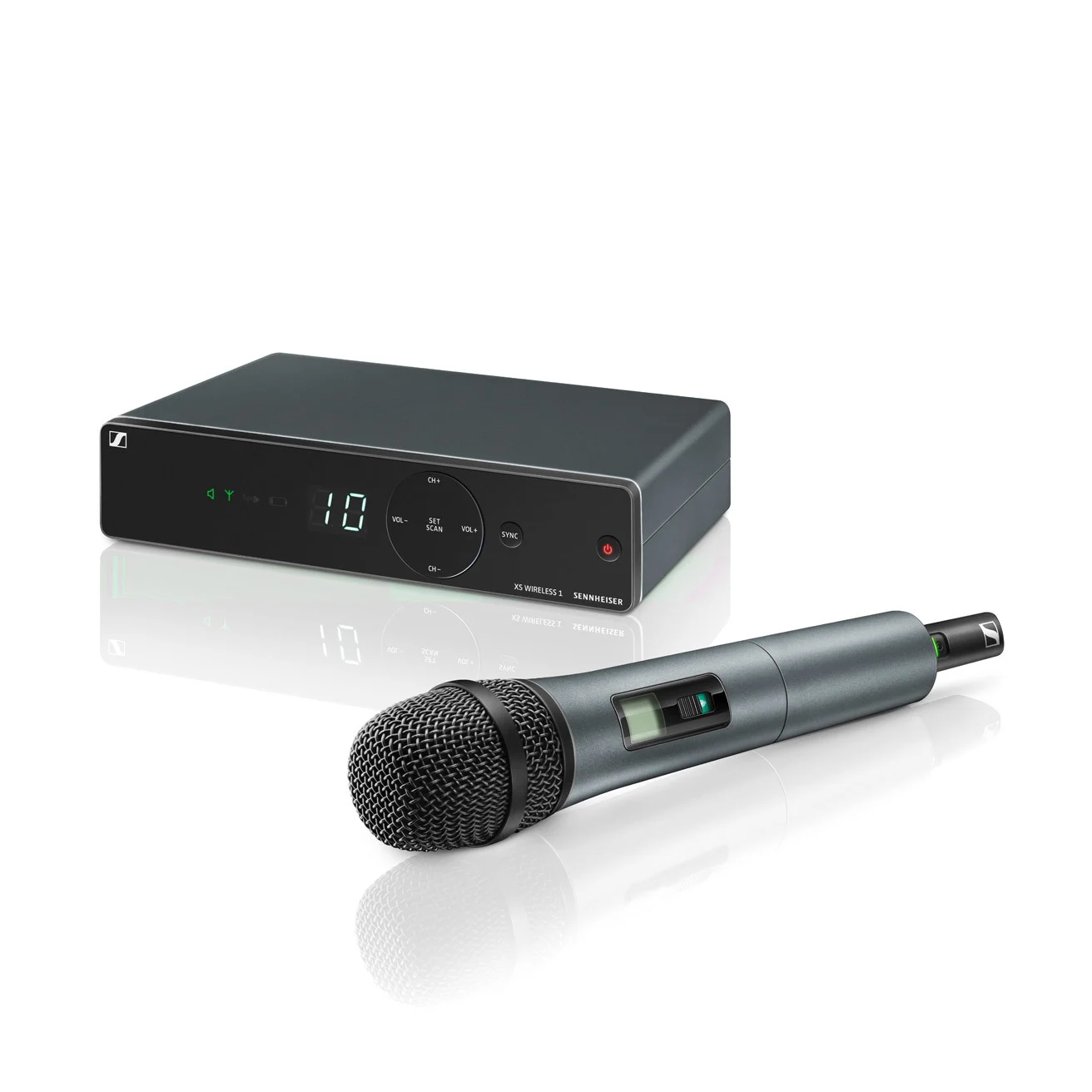

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)

  • Antenna-switching diversity reception

  • Integrated antennas

  • Automatic frequency management and synchronization via remote channel for easy setup

  • Selectable UHF frequencies within a large bandwidth

  • Up to 10 compatible channels

Automatic Frequency Management so you can focus on your performance

We developed XS Wireless 1 for those that want to concentrate on the show and not so much on the gear. Simply turn on XSW 1 and let the Automatic Frequency Management do the rest. In optimal environments, you can operate up to 10 wireless connections simultaneously, all without having to search for frequencies or worry about interference.

What's in the Box

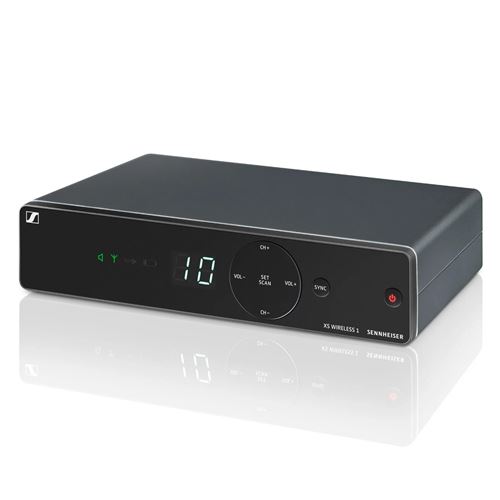

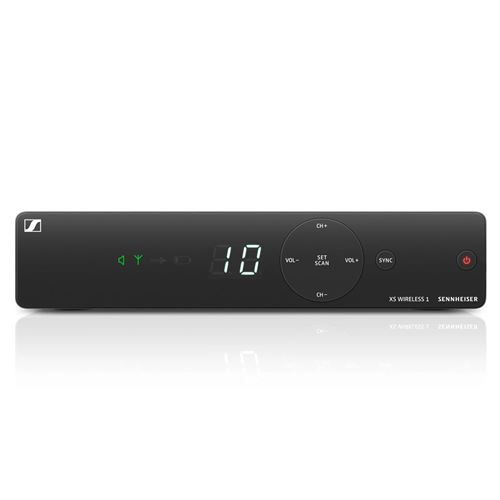

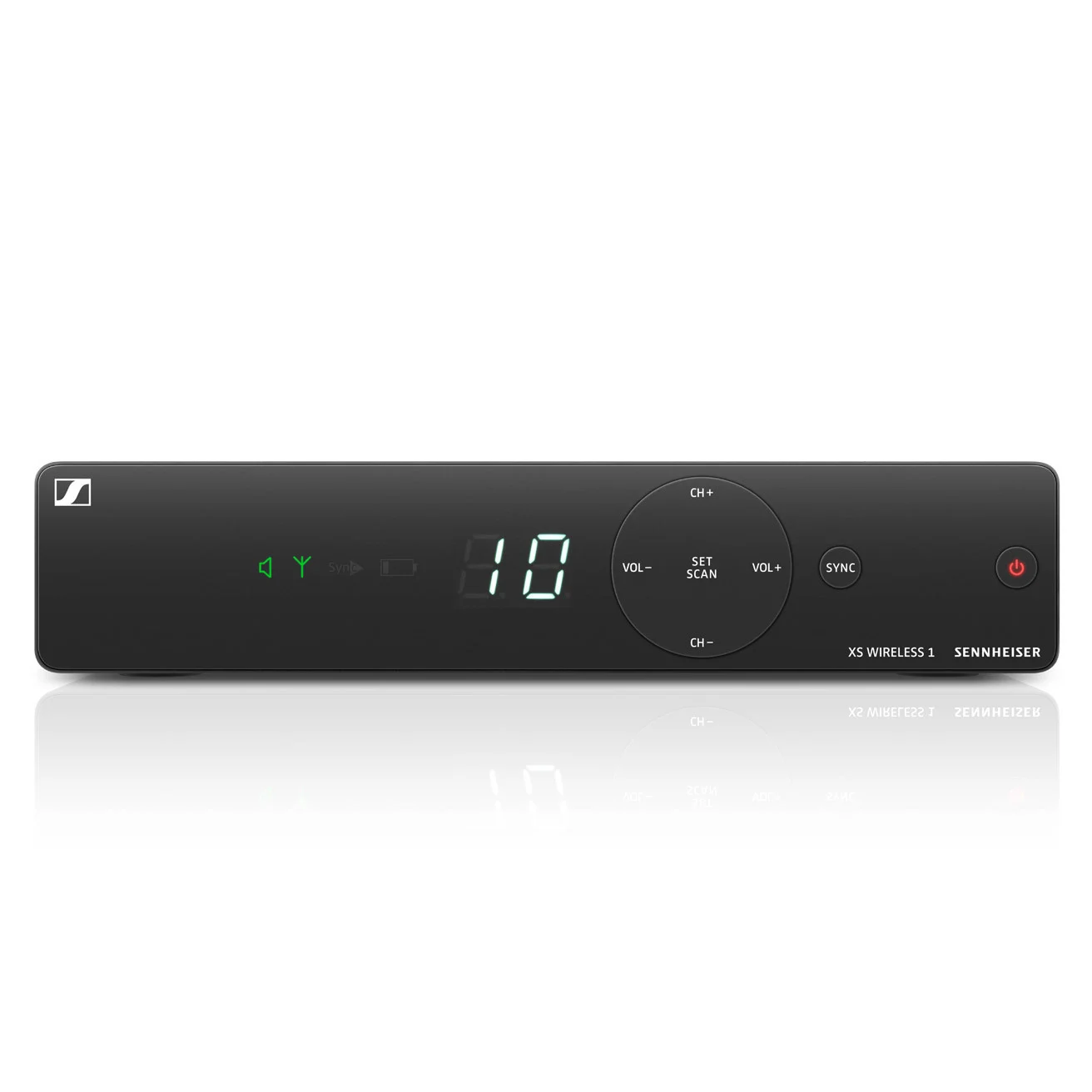

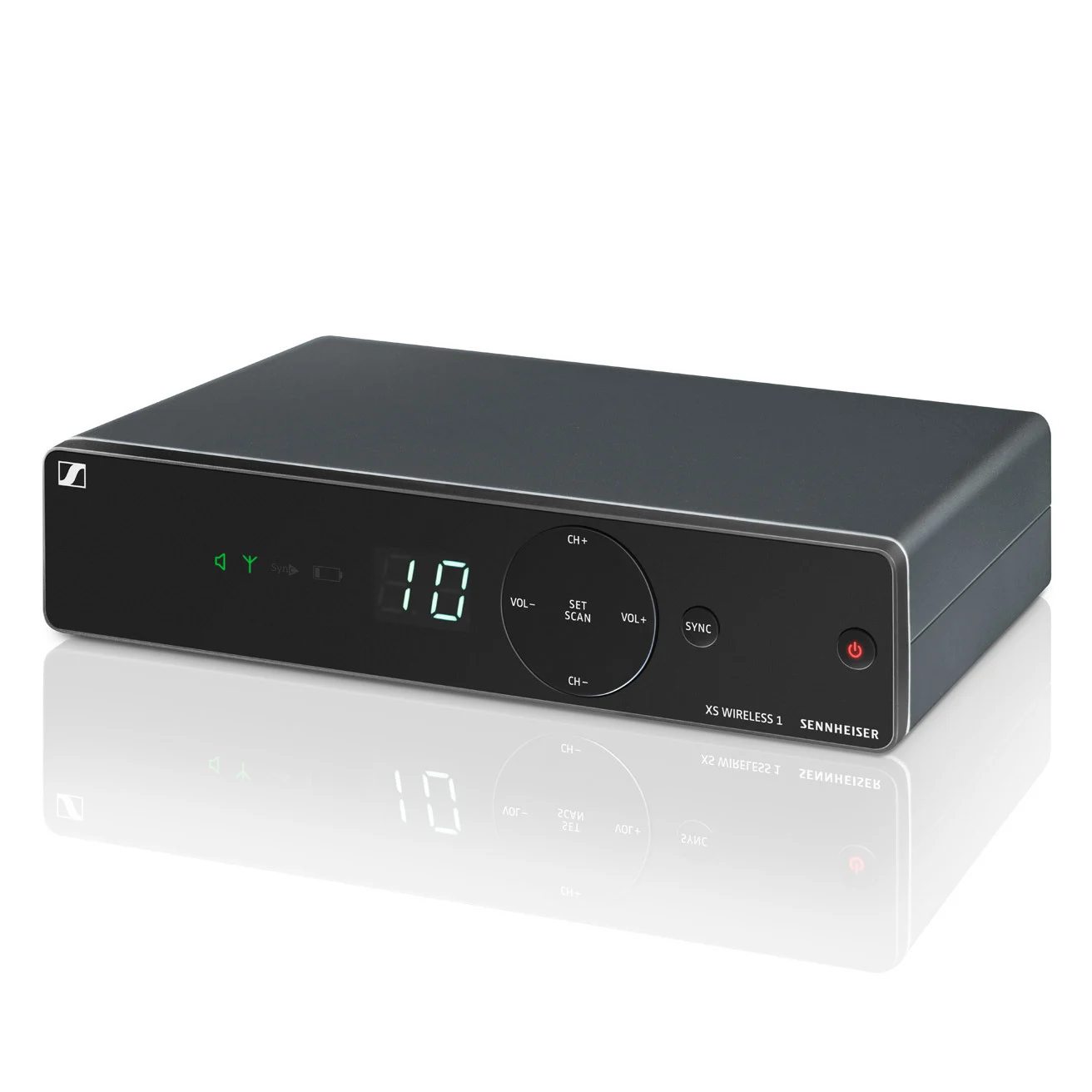

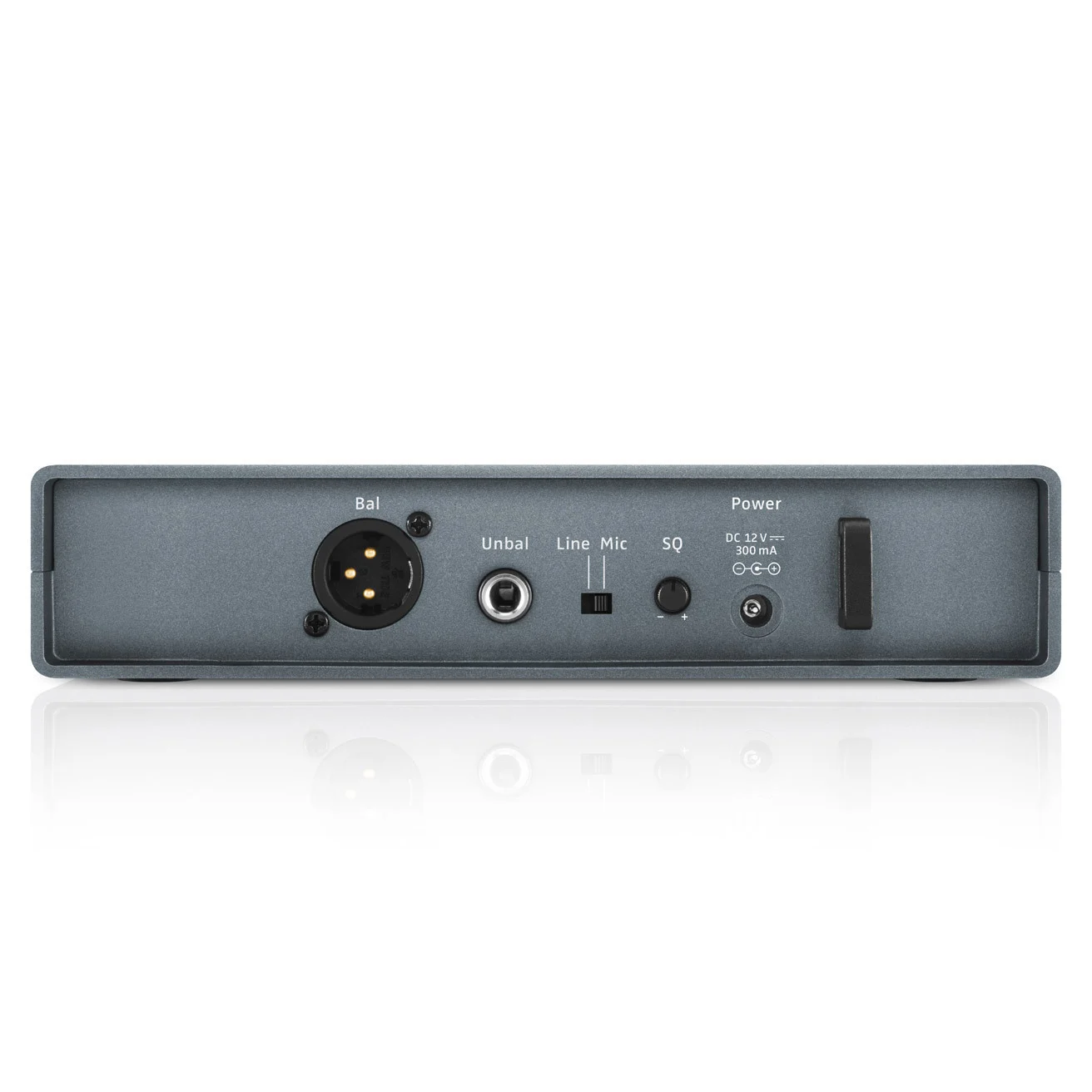

  • 1 receiver EM-XSW 1

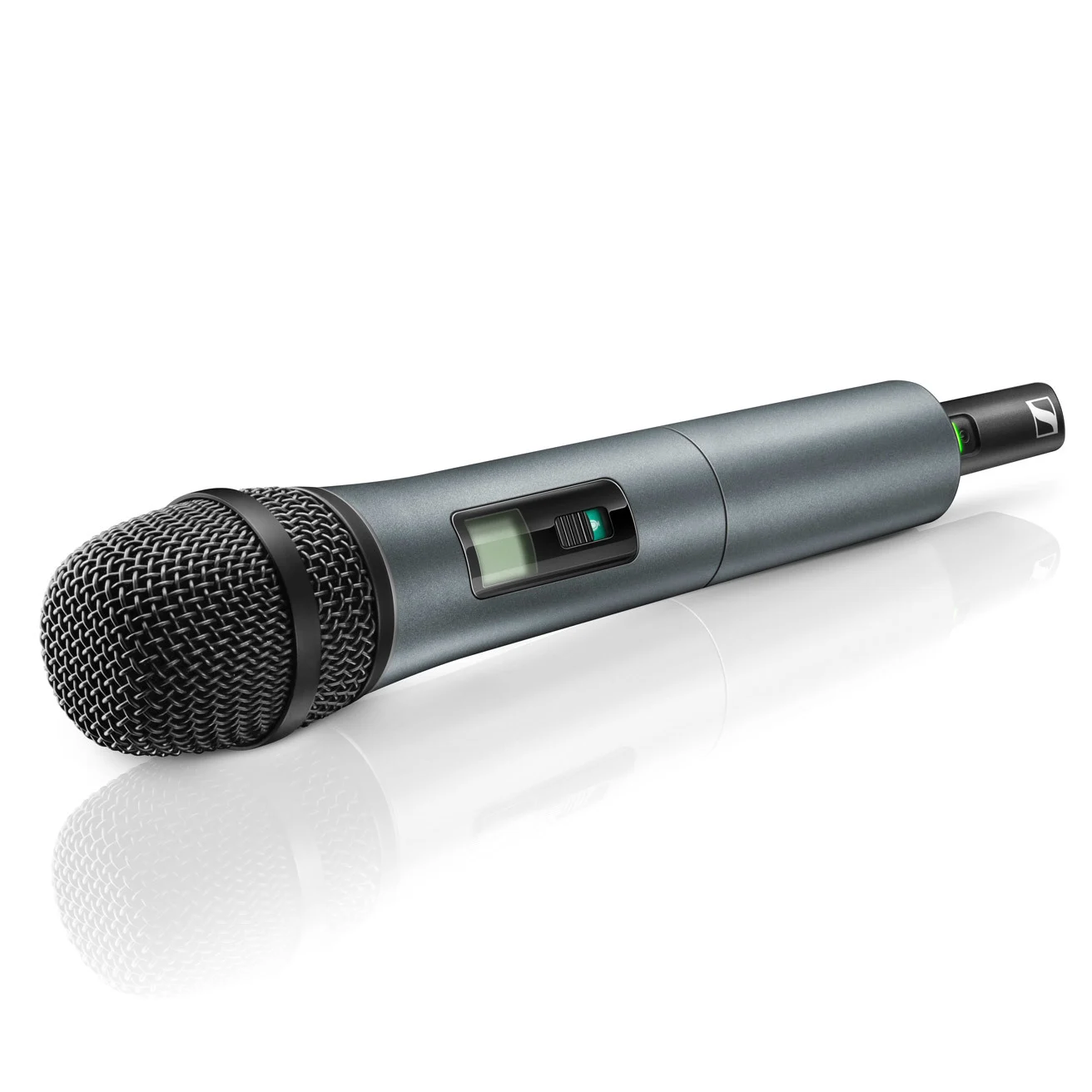

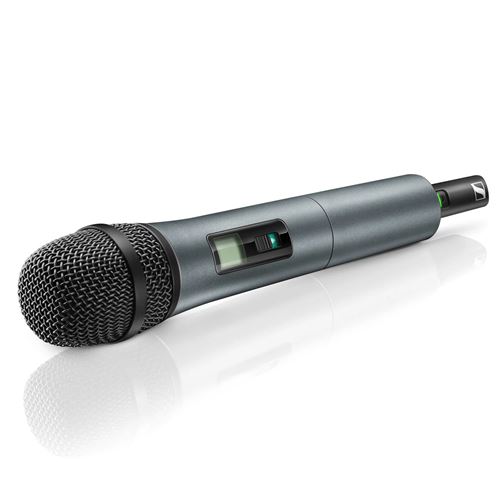

  • 1 handheld transmitter SKM 825-XSW
  • 1 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries


  • Dimensions
    approx. 200 x 42 x 127 mm
  •
  • THD, total harmonic distortion
    ≤ 0.9%
  •
  • Pick-up pattern
    cardioid
  •
  • Signal-to-noise ratio
    ≥ 103 dBA
  •
  • RF output power
    10 mW
  •
  • Switching bandwidth
    up to 24 MHz
  •
  • Operating time
    approx. 10 hrs
  •
  • Modulation
    wideband FM
  •
  • Output voltage

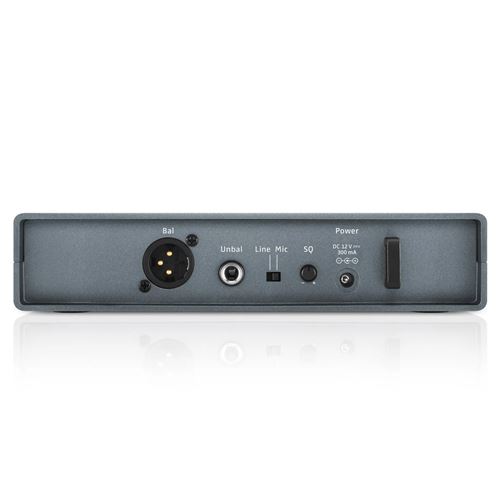

    1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  •
  • Housing
    rugged ABS housing
  •
  • Dynamic range
    dynamic
  •
  • Frequency
    8 frequency banks, each with up to 10 factory-preset channels
  •
  • Frequency range
    A: 548-572 MHz, GB: 606-630 MHz
    B: 614-638 MHz
    C: 766-790 MHz
    D: 794-806 MHz
    E: 821-832 MHz, 863-865 MHz
    K: 925-937.5 MHz
  •
  • Sensitivity
    < 3 μV at 52 dB(A)rms S/N
  •
  • Squelch
    adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
  •
  • Synchronization
    2.4 GHz, Low Power OQPSK (only active during synchronization)
  •
  • Input sensitivity
    1.5 mV / Pa
  •
  • Adjustment Range Transmitter
    0 to -30 dB, adjustable in 10 dB steps
  •
  • Audio adjustment range
    45 dB, adjustable in 5-dB steps
  •
  • Line / Mic level
    20 dB, switchable
  •
  • Temperature Range
    operation: 0°C to +40°C, storage: –20°C to +70°C
  •
  • Receiver Principle
    double superheterodyne
  •
  • Diversity principle
    Antenna switching diversity via internal antennas
Receivers
  • Weight
    approx. 340g
  •
  • Power supply
    Receiver: 12 V DC nom. / 300 mA
  •
  • AF frequency response
    Receiver: 50 to 16,000 Hz (–3 dB)
Microphone
  • Weight
    approx. 245g
  •
  • Power supply
    Microphone: 2 AA size batteries, 1.5 V
  •
  • AF frequency response
    SKM 825: 80-14,000 Hz
