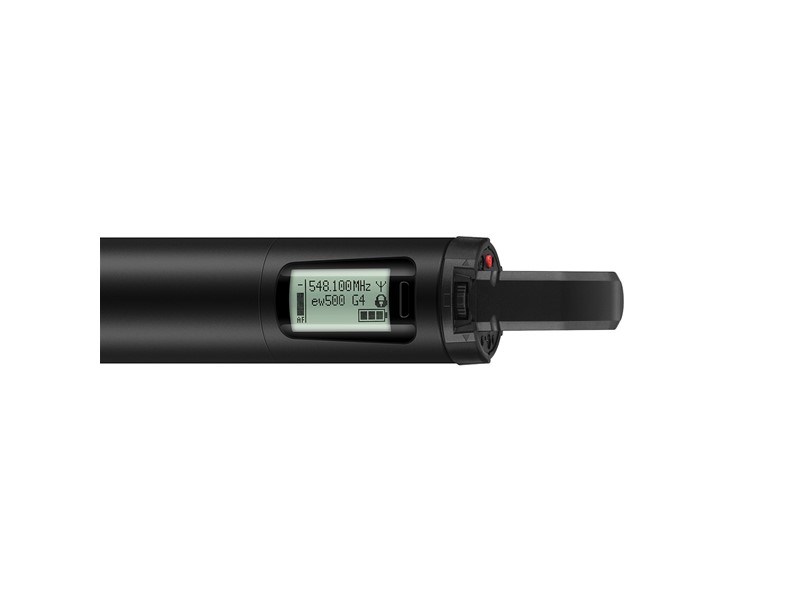

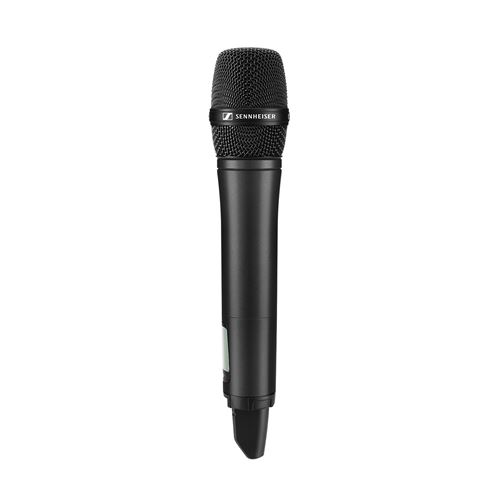

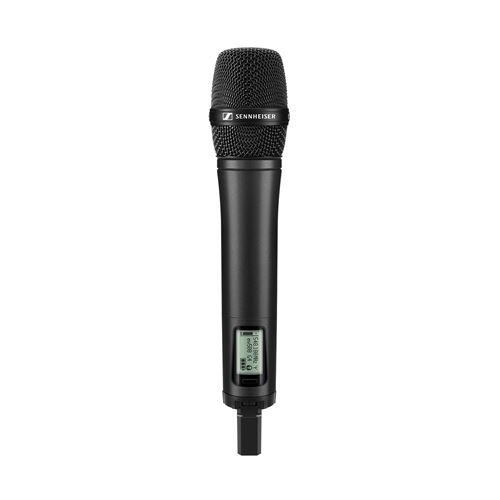

SENNHEISER G4 500 Series Handheld Transmitter

SKM 500 G4

SENNHEISER

Whatsapp for enquiry Email for enquiry






Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.

  • Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Up to 32 compatible channels

  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

What's in the Box
  • SKM 500 G4 handheld transmitter
  • MZQ 1 microphone clamp
  • 2 AA batteries
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet


  • Frequency range
    AS: 520 - 558 MHz
    Aw+: 470 - 558 MHz
    Bw: 626 - 698 MHz
    Cw: 718 - 790 MHz
    Dw: 790 - 865 MHz
    GBw: 606 - 678 MHz
    Gw: 558 - 626 MHz
    Gw1: 558 - 608 MHz
    JB: 806 - 810 MHz
    K+: 925 - 937.5 MHz
  •
  • Dimensions
    Approx. Ø 50 x 265 mm
  •
  • Compander
    Sennheiser HDX
  •
  • THD, total harmonic distortion
    ≤ 0.9 %
  •
  • Weight
    (incl. batteries) approx. 450 g
  •
  • Signal-to-noise ratio
    ≥ 115 dBA
  •
  • RF output power
    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
  •
  • Switching bandwidth
    up to 88 MHz
  •
  • Peak deviation
    ±48 kHz
  •
  • Nominal deviation
    ±24 kHz
  •
  • Operating time
    Typically 8 h
  •
  • Modulation
    Wideband FM
  •
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
  •
  • Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 μA
  •
  • Powering
    3 V battery / 2.4 V rechargeable battery
  •
  • Transmission frequency
    Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  •
  • AF frequency response
    80 – 18,000 Hz
  •
  • Temperature Range
    -10 °C to +55 °C
  •
  • Frequency stability
    ≤ ±15 ppm
