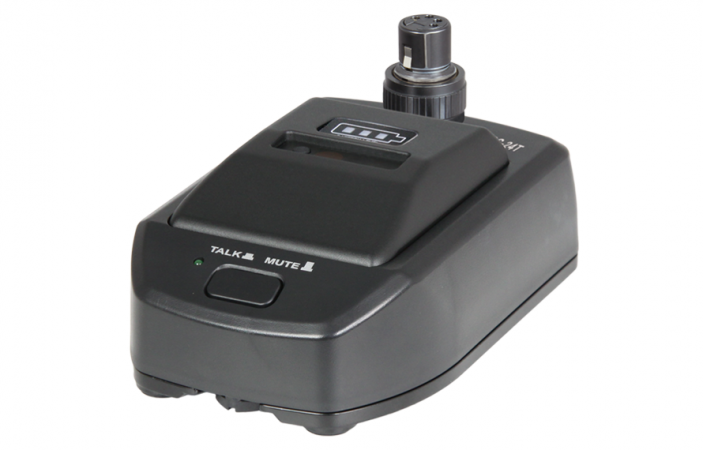

- BC-T Series encloses the transmitter PCB for wireless transmission and can also connect directly with MM-206 / MM-205 / MM-204 gooseneck microphone.
- For wired transmission, the output jack requires phantom power from the mixer.
- For wireless transmission, the operational controls are the same as the ACT-T Series bodypack transmitters. A built-in ICR 18500 rechargeable lithium-ion battery can be charged by an external charger or simply replace with another spare battery.
- A TALK / MUTE button with a LED indicates TALK (LED on) or MUTE (LED off).
| Model | BC-24T |
| Name | 2.4 GHz Wireless Conference Microphone Base |
| Built-in Transmitter | ACT-24TC (2.4 GHz Digital) |
| Receiver | ACT-2400 Series |
| Input Jack | 4 pin XLR female |
| Output Jack | Balanced XLR male |
| Microphones | MM-206 / MM-205 / MM-204 gooseneck microphone |
| TALK / MUTE Button | Mechanical PUSH-HOLD switch, with LED status indicator. |
| Power Supply | A built-in ICR 18500 rechargeable lithium battery and the charging circuit. |
| Phantom Power | External 24 ~ 48 V DC phantom power is required. |
| Color | Black |
| Dimensions | 100 × 78 × 150 mm (W×H×D) |
| Net Weight | Approx. 700 g |
| Note | Refer to the actual product in the event of product discrepancy. |
