DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.
The full-range models feature advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges and a practical 2 channel mic/line mixer makes life on stage easier.
The floor monitor models feature a 7-band EQ to help deliver maximum volume without feedback and a handy powered output for connecting to passive floor monitors.
While the electronics of DVP-AX set them apart from the competition, it is important not to overlook the custom Wharfedale Pro drivers in this lineup. Using dual layer LF transducers and the acclaimed IRIS X compression drivers, the mechanical features of DVP-AX have not been compromised.
DVP-AX delivers advanced electronics in a user-friendly format – but in a road-ready cabinet.
- Class D bi-amplified active loudspeakers
- Custom Wharfedale Pro transducers including IRIS-X HF drivers
- 2-way full range models feature internal 6-position DSP
- Subwoofers with Low Pass filter control
- Monitors with 7-band internal Graphic EQ and secondary output
- Large voice coils
- Impressive SPL figures
- For install or on the road

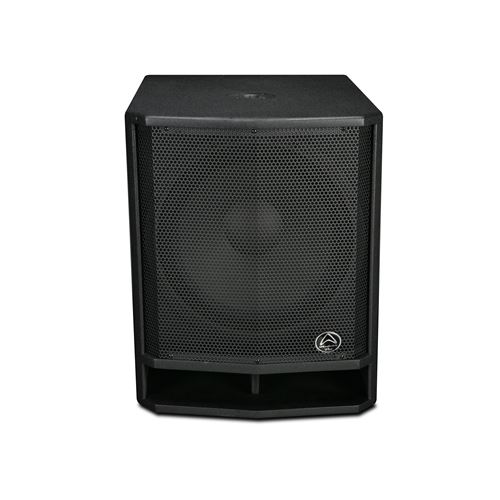

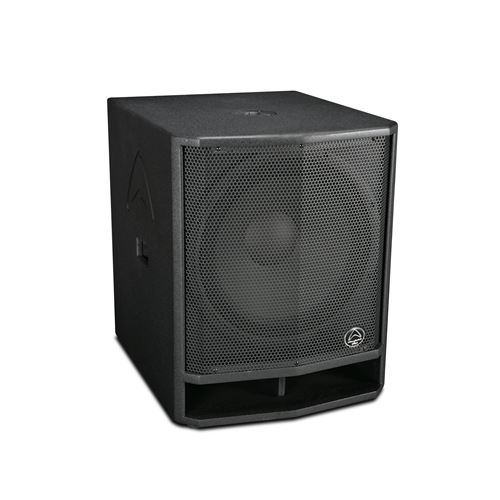

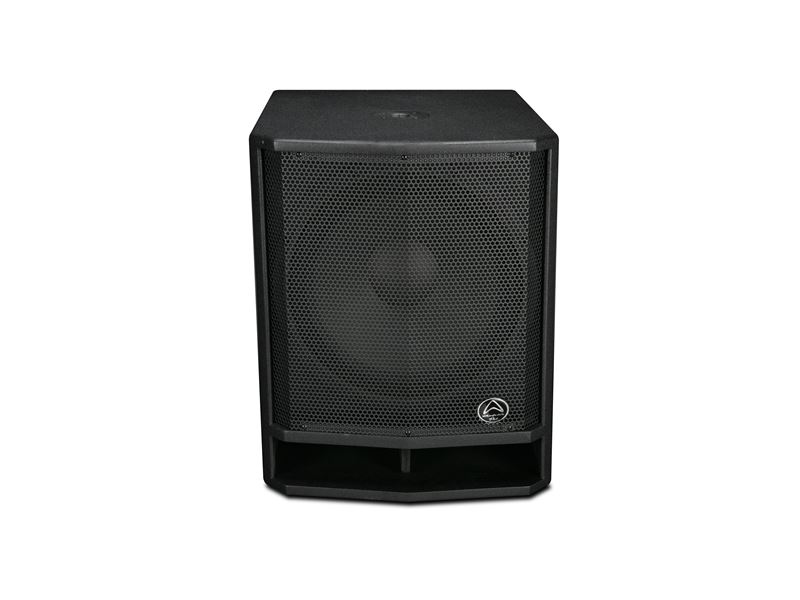

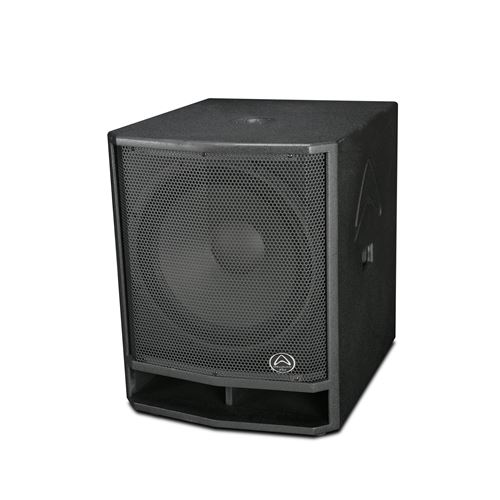

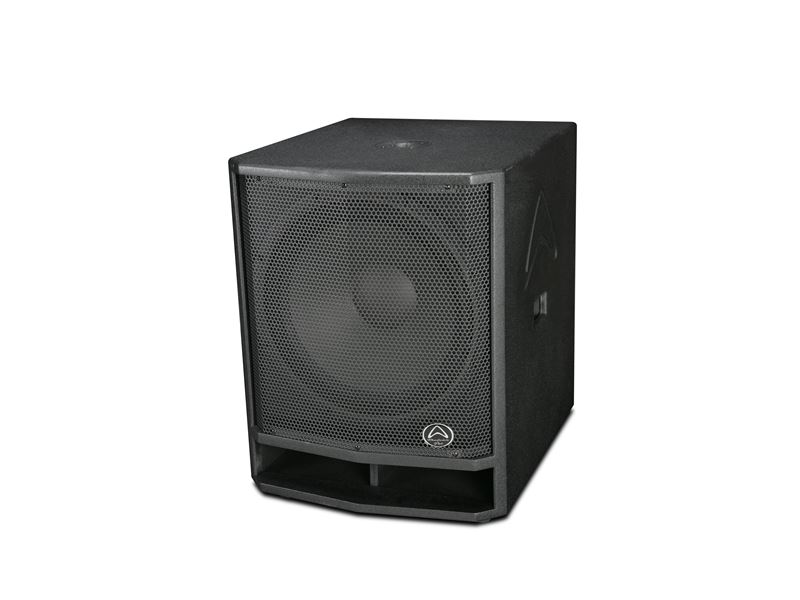

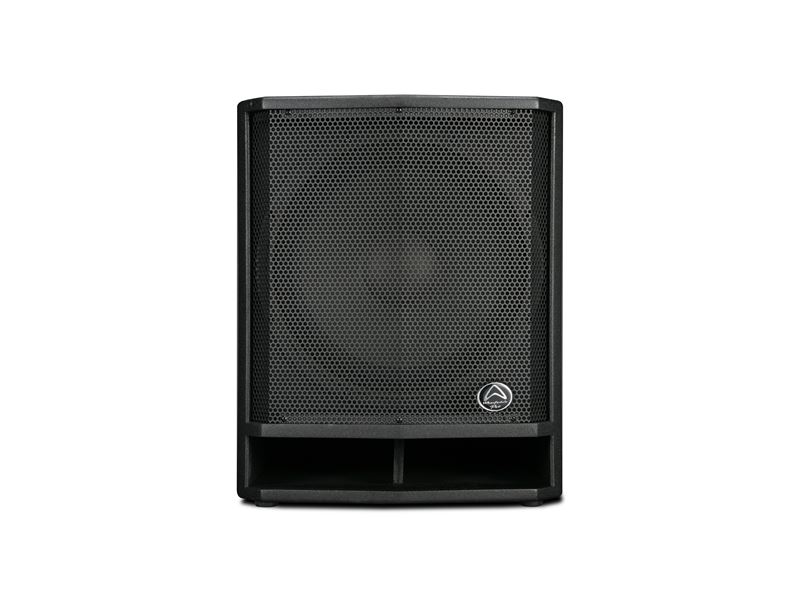

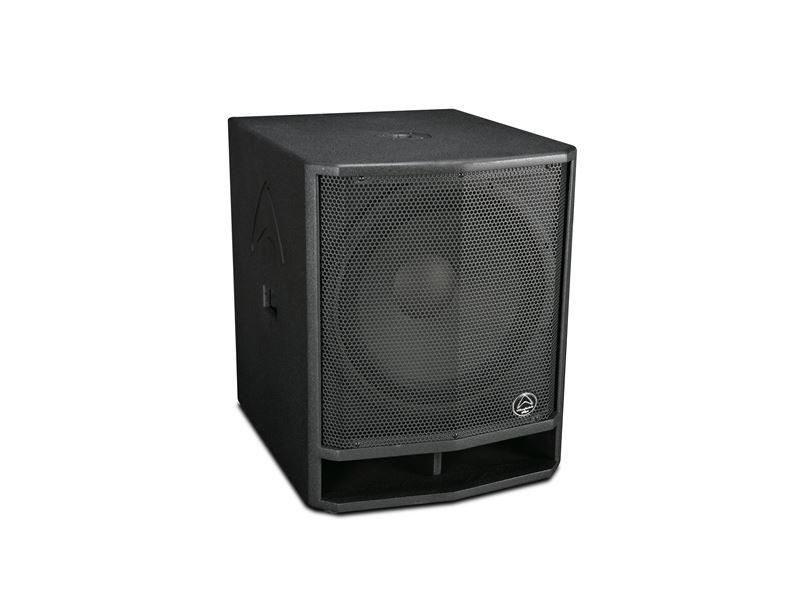

Model Name | DVP-AX18B |
System Type | Active 18″ subwoofer |
Frequency Response (+/-3 dB) | 35-150 Hz |
Frequency Range (-10 dB) | 30-150 Hz |
Maximum SPL @1 m | 132 dB |
Sensitivity @ 1 W / 1 m | 99 dB |
LF transducer Size (mm / inches) | 470 mm / 18″ |
LF Coil Size (mm / inches) | Quad layer 2.5″ |
HF transducer : Type | |
HF Coil Size (mm / inches) | |
HF Exit Size (mm / inches) | |
HF Diaphragm Material | |
Nominal Coverage (H x V) | |
LF Power Amplifier -Class D, | 600 W / 1200 W |
RMS/Peak Watts | |
HF Power Amplifier -Class D, | |
RMS/Peak Watts | |
DSP | N/A |
Controls—D-EQ | N/A |
Amplifier Protection. Power On, Thermal, low voltage | Yes |
Driver Protection,DC, Short, Clip indicator | Yes |
Limiter Indicator | Red LED |
Power Indicator | Green LED (Red LED front) |
INPUTS : Input Sensitivity : Balanced | 775 mv |
Maximum Input Level | 6 v |
Input Connector | XLR & 1/4″ (Line/MIC) |
Input Impedance | Balanced:20 K |
LPF control | 80 Hz-120 Hz |
Polarity Control | 0°/180° |
OUTPUTS : Line Output Connector | XLR THRU/HPF(OUT) |
AC Power Options : SMPS | 220-240 V 50/60 Hz |
100-120 V 50/60 Hz | |
Pole socket | 35 mm pole socket |
Handles | 2 carry handles (one on each side) |
Enclosure Material and Finish | MDF / Black paint |
Grille Material & Finish | steel |
Dimensions – Unpacked (mm / inches): Height | 650 mm / 25.6” |
Width | 528 mm / 20.8” |
Width (rear) | 528 mm / 20.8” |
Depth | 639 mm / 25.2” |
Dimensions – Packed (mm / inches):Height | 740 mm / 29.1” |
Width | 725 mm / 28.5” |
Width (rear) | 725 mm / 28.5” |
Depth | 614 mm / 24.2” |
Net Weight (kg / lbs) | 38.3 kg / 84.3 lbs |
Gross Weight (kg / lbs) | 44.2 kg / 97.2 lbs |
