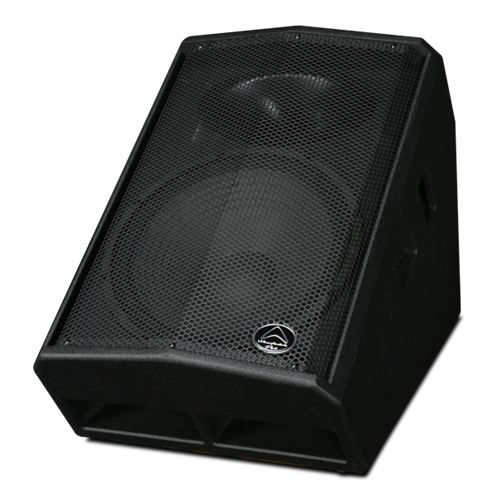

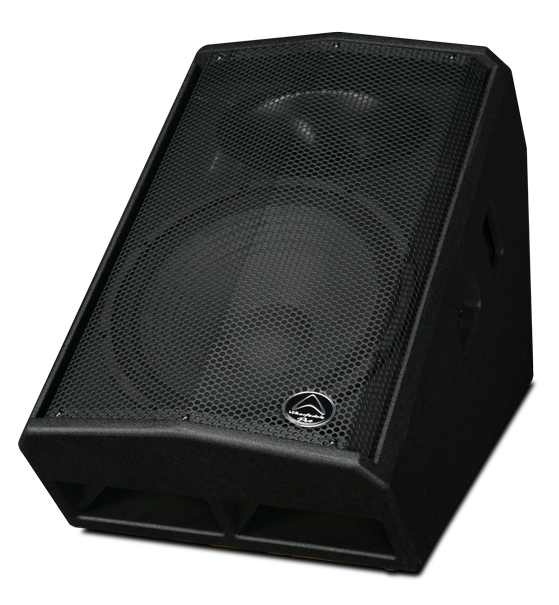

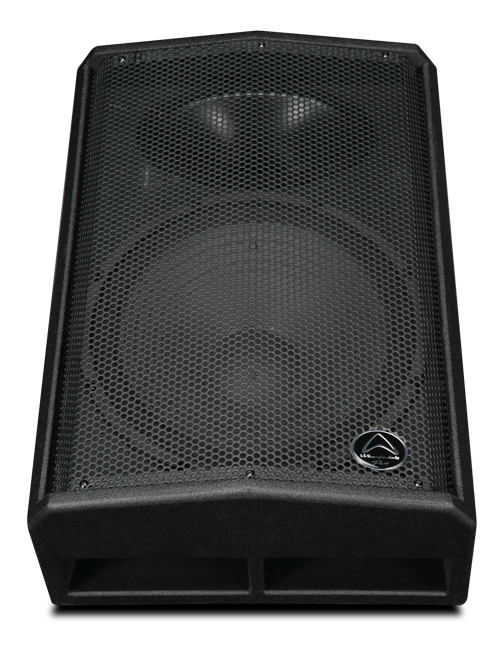

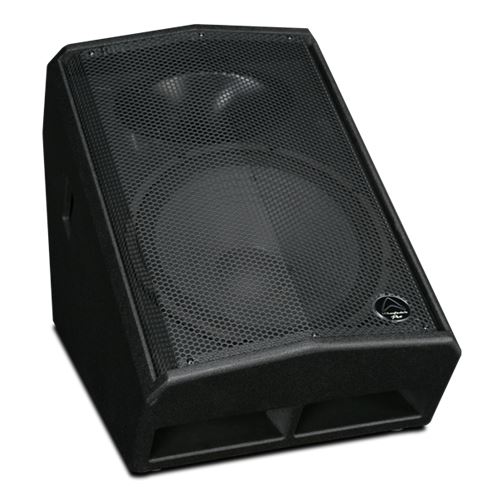

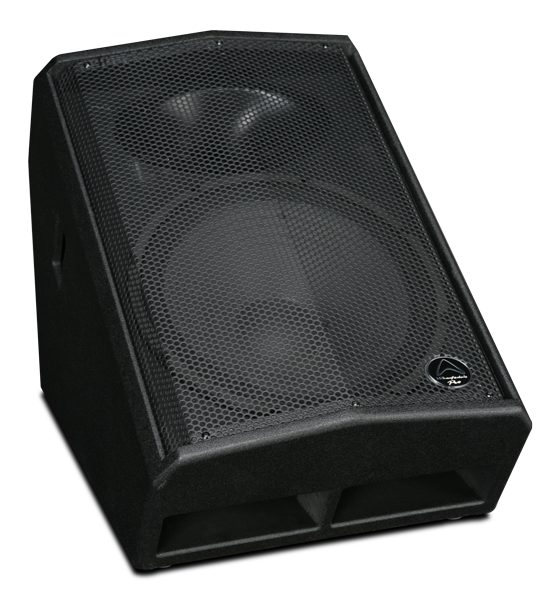

WHARFEDALE PRO DVP-X Series 350 Watts RMS 15" Passive Floor Monitor Speaker

DVP-X15M

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






DVP-X15M

350 watts
AES (RMS)
  • 15″ floor monitor
  • 1.75″ IRIS X HF driver
  • 15″ LF driver with 2.5″ voice coil
  • 350 watts AES (RMS)
  • 700 watts Programme
  • 1400 watts Peak
  • 130 dB Max SPL @ 1 meter

The DVP-X range has been specifically built for hardworking musicians and DJ’s on the road. Covering all live applications this robust line up covers all sizes from a full range 12” through to the huge 138 dB 2 x 18” subwoofer.

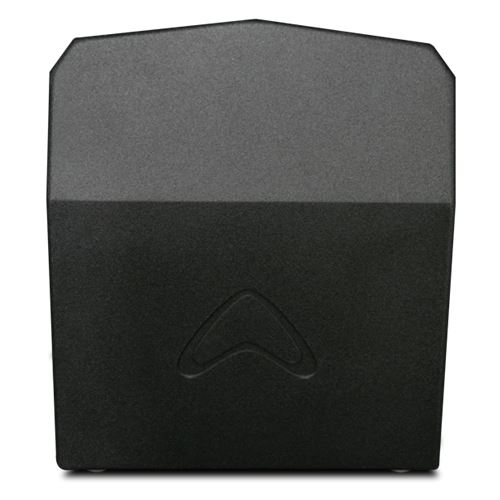

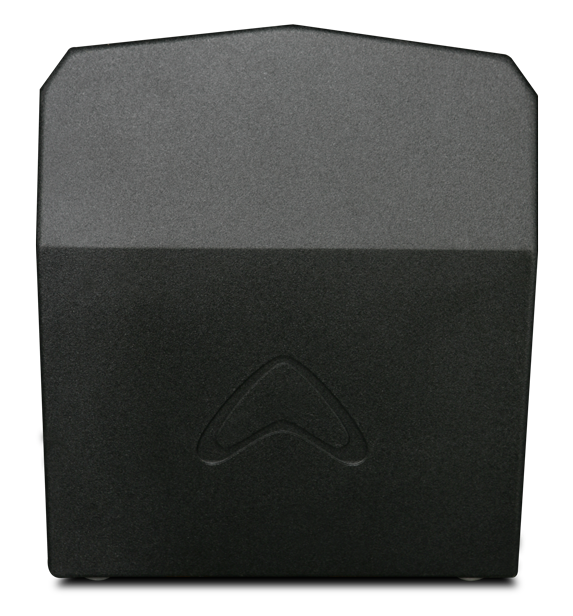

The MDF cabinets of DVP-X series are protected by an enhanced version of Wharfedale Pro’s proprietary Rhino Rock paint. This finish gives improved protection against chips, dinks and clunks during transportation to and from the gig. DVP-X will look as good as new even after many successful tours, parties and events. The iconic Wharfedale Pro logo is also CNC routed into the cabinet design.

But DVP-X is more than just a strong cabinet. The drivers use the latest Wharfedale Pro driver technology. For the LF drivers, a curvilinear, double-roll surround is used for smooth mid-high transitions and stability for low through to mid-range frequencies. All models have 2.5” voice coils for improved thermal dissipation.

A 44mm diaphragm IRIS X4 HF driver is used throughout the range. Using a solid aluminium rear plate, the HF driver is strengthened for durability and heat is dissipated efficiently for high pressure use during prolonged time periods. Wharfedale Pro engineers have also selected a 90° x 60° elliptical waveguide optimised for wide coverage in multiple venues while touring.

Special attention has been paid to the port and port mouth to ensure a huge bass output with detail and minimised distortion. For the floor monitors, the port mouth lies parallel to the ground, creating a reflective boundary effect to guarantee low-end delivery. Each port on each speaker has been tuned individually for low-end punch.

  • Individually tuned front ported systems for clear, punchy bass
  • Proprietary enhanced Rhino Rock paint for a chip resistant finish

  • Extended-range IRIS X Titanium dome HF drivers
  • High powered LF drivers using a double-roll surround
  • Fine-tuned crossovers, built in house for audio signal purity and optimised tuning
  • HF limiters are installed for thermal protection against extreme power input
  • 8 models in the passive line up


Model Name DVP-X15M
System Type Passive
Configuration Two-way
Frequency Response (+/-3 dB) 55-18 KHz
Frequency Range (-10 dB) 50-20 KHz
Sensitivity (2.83 v / 1 m) 98 dB
Calculated Maximum SPL @1 m 130 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 381 mm / 15″
Voice Coil Size 65 mm / 2.5”
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 350 W
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 W
Nominal Coverage (H x V) 90°x60°
Nominal Impedance 8 Ω
Power
System Continuous Power 350 W
System Programme Power 700 W
System Peak Power 1400 W
Crossover frequency 2.2 KHz

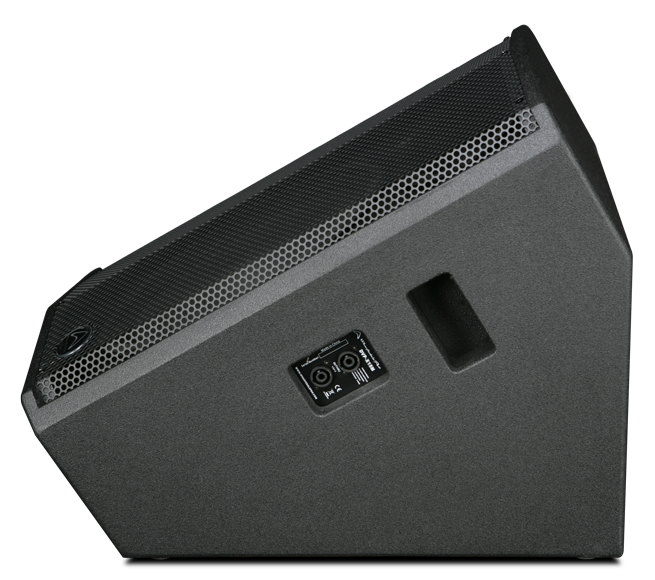

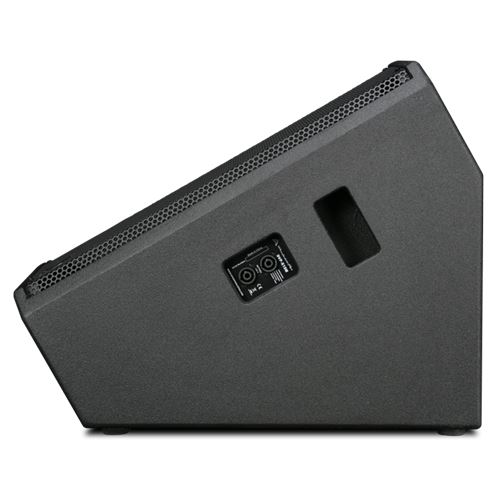

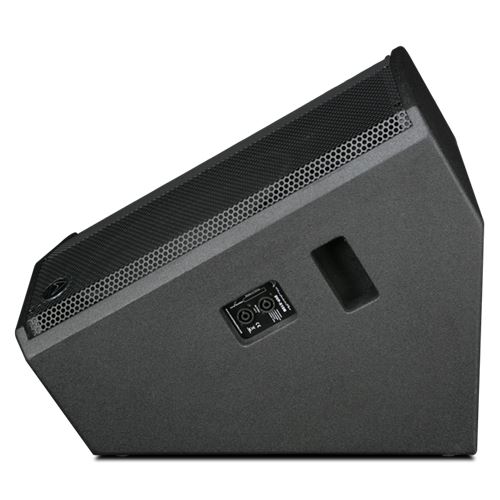

Input Connector 2 x NL4 (speakON compatible) + 1/4″ Jack combo
Hardware N/A
  2 carry handles
Enclosure
Enclosure Material and finish MDF
Colour Options black paint
Grille Material & Finish steel
Dimensions – Unpacked
Height 520 mm / 20.5″
Width Front 449 mm / 17.7″
Width Rear 449 mm / 17.7″
Depth 640 mm / 25.2″
Dimensions – Packed
Height 485 mm / 19.1″
Width Front 676 mm / 26.6″
Width Rear 676 mm / 26.6″
Depth 541 mm / 21.3″
Weight
Net Weight 21.5 kg / 47.3 lbs
Gross Weight 24.5 kg / 53.9 lbs
