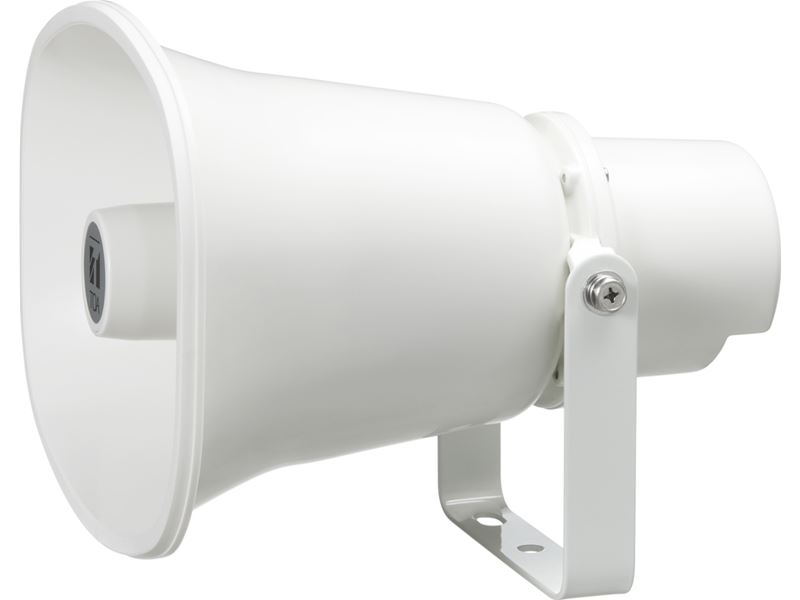

TOA SC Series 30 Watts Paging Horn Speaker (8 Ohms)

SC-632

TOA

Whatsapp for enquiry Email for enquiry






The powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.


Rated Input 30 W (mobile mount used 15W)
Rated Impedance 8 Ω
Output Sound Pressure Level 113 dB (1 W, 1 m at 500 - 2500 Hz peak level)
Frequency Response 250 - 10,000 Hz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
Sensitivity when used as microphone (0 dB =1W) 74 dB at 1 kHz
Finish

Upper Cover: Aluminum, White, powder coating
Horn Flare: HIPS resin, White
Reflector Horn, Unit Case: ABS resin, White
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24") in diameter, 450 mm (17.72") in length), White

Dimensions 292 (W) × 234 (H) x 280 (D) mm
Weight 1.8 kg
Option Swivel bracket YS-151S (can be used instead of supplied bracket)
