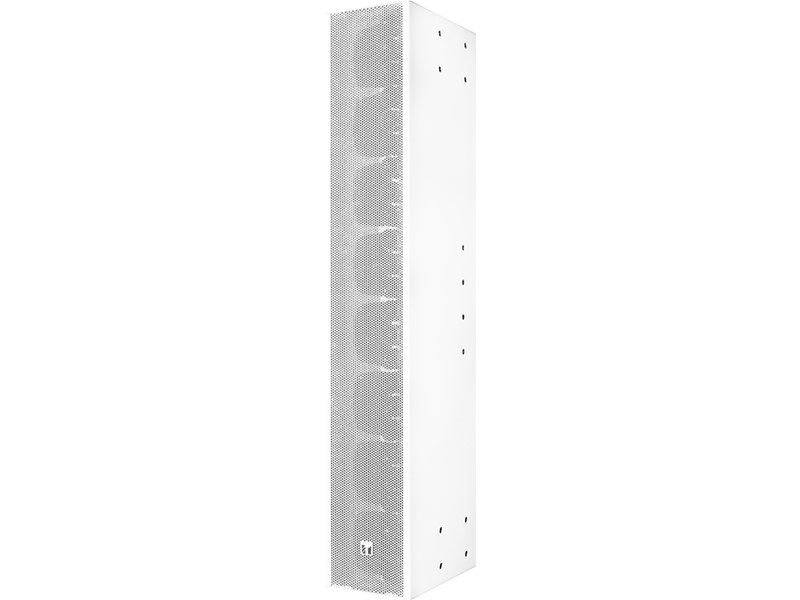

TOA TZ Series 240 Watts Slim Array Speaker

TZ-S240W

TOA

Whatsapp for enquiry Email for enquiry






Featuring slim construction, the TZ-S240W is a 2-way array speaker containing 32 speaker elements. The sound source speaker elements are vertically arranged in close proximity to each other, and form a continous linear sound source, achieving uniform sound pressure with less attenuation due to distance.


Enclosure Bass Reflex Type
Max. Input Power Continuous   : 240 W
Program       : 480 W
Rated Impedance 8 Ω
Sensitivity 94 dB (1 W, 1 m)
Frequency Response 95 Hz - 20,000 Hz
Crossover Frequency 2,500 Hz
Directivity Horizontal: 100°, Vertical: 5°
Speaker Component Low Frequency  : 10 cm (4") cone-type woofer × 8
High Frequency : 2.5 cm (1") Balanced Dome Tweeter x 24

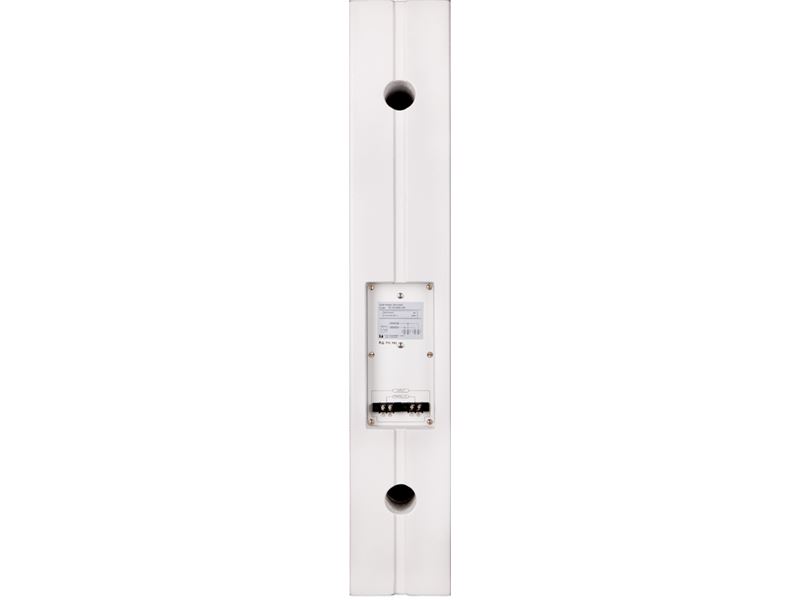

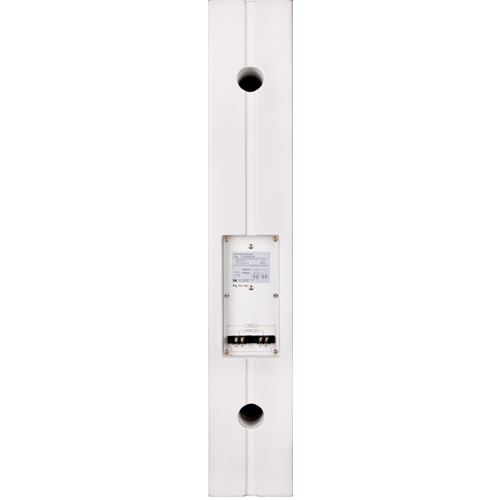

Input Connector M4 Screw Terminal x 2
Operating Temperature -10 °C - +50 °C
Finish Enclosure: White Painted MDF Board
Grille: White Painted SPCC Punched Net
Dimensions 160 (W) × 950 (H) × 262 (D) mm
Weight 17 kg
Accessories Mounting Bracket x 2
Option Flying Bracket: SR-FB4
Wall Tilt Bracket: SR-TB4
Extension Plate: SR-EP4
Wall Mounting Bracket: SR-WB4
Stand Adaptor: SR-SA4
Floor Stand: SR-FS4
Matching Transformer: MT-S0601 (For high impedance)
