Turbosound 2 Way 5" Full Range Ceiling Loudspeaker with Line Transformer for Installation Applications (White)

TCS-52C-T-WH

turbosound

Whatsapp for enquiry Email for enquiry






The white Athens TCS52C-T-WH 2-Way 5" Full Range Ceiling Loudspeaker with Line Transformer from Turbosound features a 240W 2-way 5" full range ceiling speaker system ideally suited to installed speech and music sound reinforcement applications. Engineered as a 2-way system not requiring any external equalization or filtering, this unit can be driven by low impedance amplifiers, or 70V/100V line amplifiers. The speaker achieves optimal performance when used with a low frequency high pass filter or with Turbosound loudspeaker management systems.

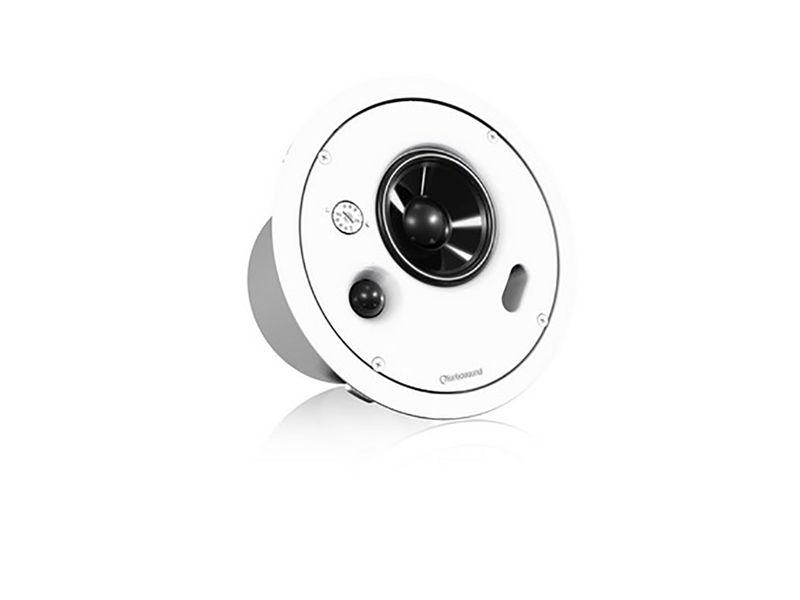

The plated steel fire can enclosure features a powerful, high excursion 5" low frequency driver with a high temperature voice coil, and a 1" ferrofluid cooled neodymium high frequency driver mounted on a 110° low distortion waveguide for optimized dispersion.

Finished in semi matt white, this loudspeaker can alternately be painted to meet the specific aesthetics of the venue. The UL94 V-0 rated ABS front with plated steel fire can enclosure comes with a dedicated mount ring and ceiling tile rails for ease of installation. Multiple transformer taps are provided for 70V and 100V line systems or 16 ohms direct input. Connections are provided via industry standard Phoenix blocks for input and link connections to additional enclosures.


  • Compact 2 way full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • High excursion 5" low frequency driver with high temperature voice coil
  • 1" ferrofluid cooled neodymium high frequency driver
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low distortion waveguide provides 110º coverage
  • Mount ring and ceiling tile rails included
  • UL94 V-0 rated ABS front with plated steel fire can enclosure
  • Semi matt white finish fits unobtrusively in any environment

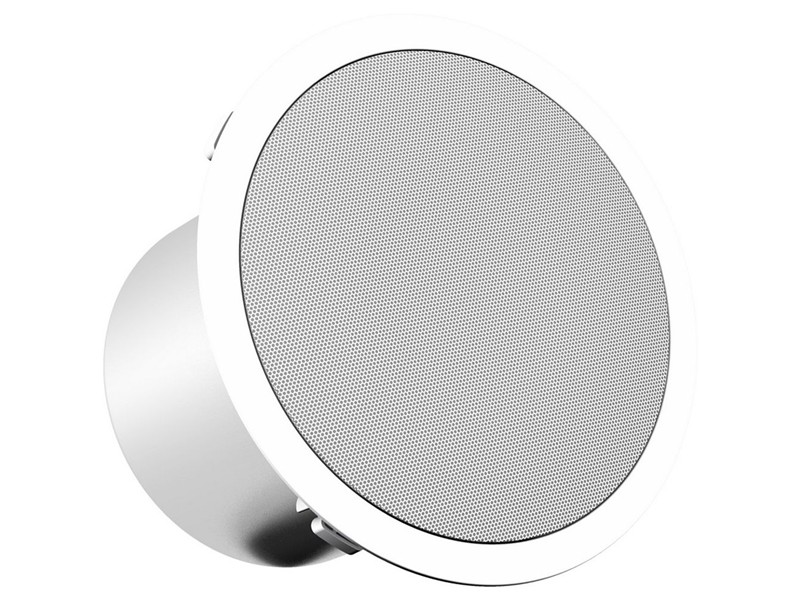

  • Powder coated perforated steel mesh grille with dust protection

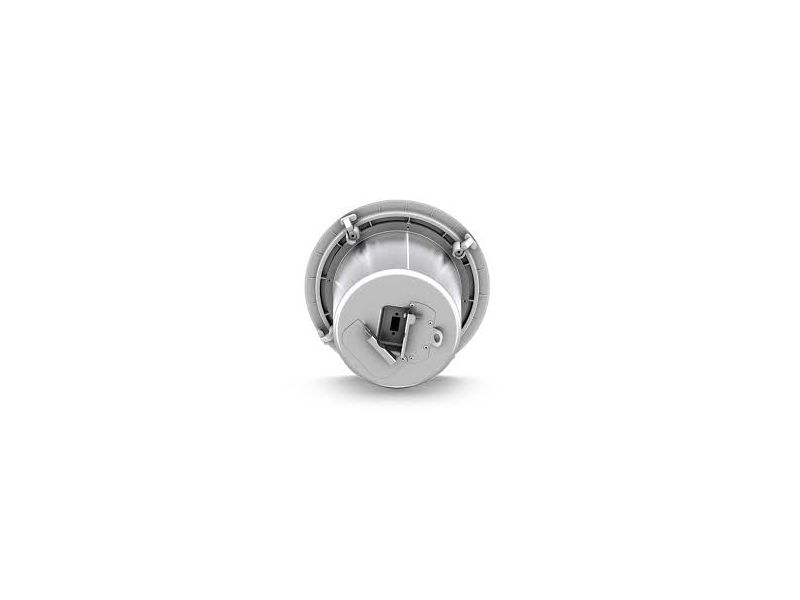

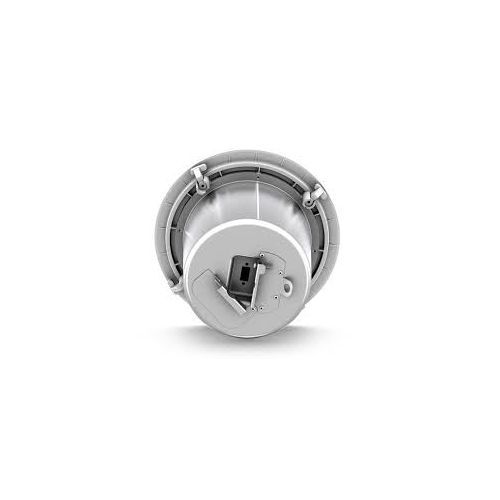

  • Phoenix* connector with steel cover and strain relief accepts fire rated cable
  • Designed and engineered in the U.K.
