- Compact RF Amplifier Systems in Wideband and Multiband for Medium and Small Collectives
- Ideal for Head Station Amplification and Re-Amplification of the Line or Extension
- High Gain and Output Level with Very Low Distortion
- Seperate Amplification of FM-VHF-UHF with Independant Adjustment of Each Sub-Band

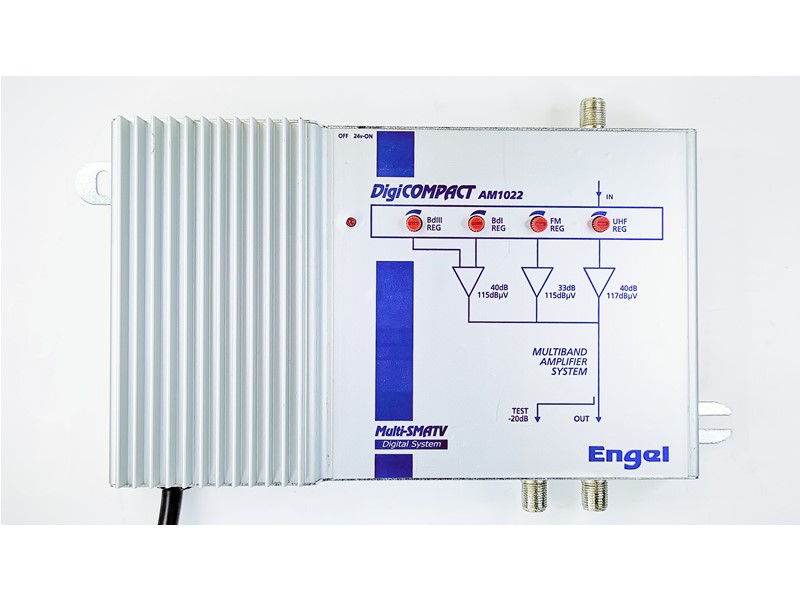

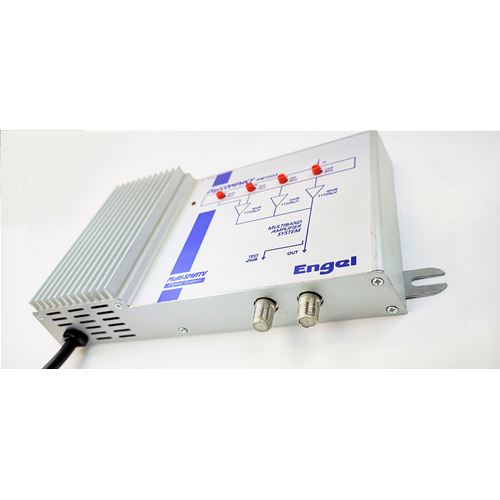

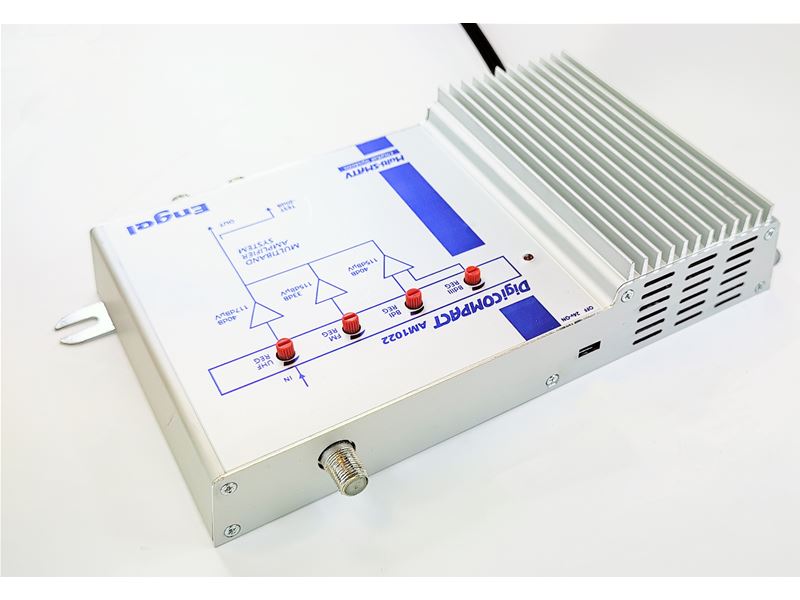

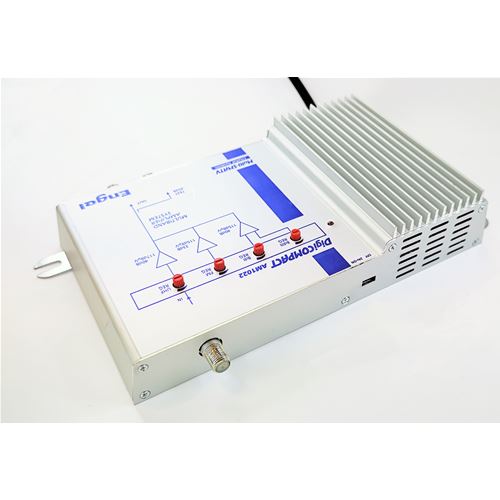

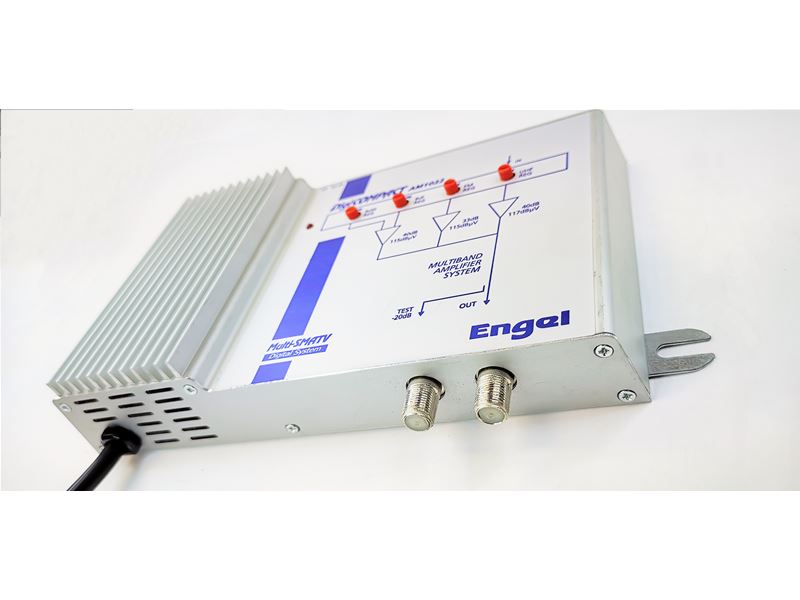

| Model | AM-1022 |
| Number of Inputs | 1 |
| Adjustable Bands | FM-I-III-U |
| Seperate Amplification | FM-I/III-U |
| FM/I/III/U Gain (dB) | 33/40/40/40 |
| Adjustment | 0/-20dB |
| Output Level (dBuV-DIN45004B | 115/V-117/U |
| Noise Factor (V-U) | 7-6dB |
| Test Output | -20dB |
| Power Supply | 230Vac |
| UHF Preamp. Supply | 24V/60mA |
| Size (mm) | 200 x 115 x 40 |
