Provide a combined audio source for the broadcasting system, and manually control the CD, MP3, Bluetooth and radio players
- Standard cabinet-type CD, MP3 (with USB and SD card interfaces) and radio integrated playback equipment.
- Provide a combined audio source for the broadcasting system, and manually control the CD, MP3, Bluetooth and radio players.

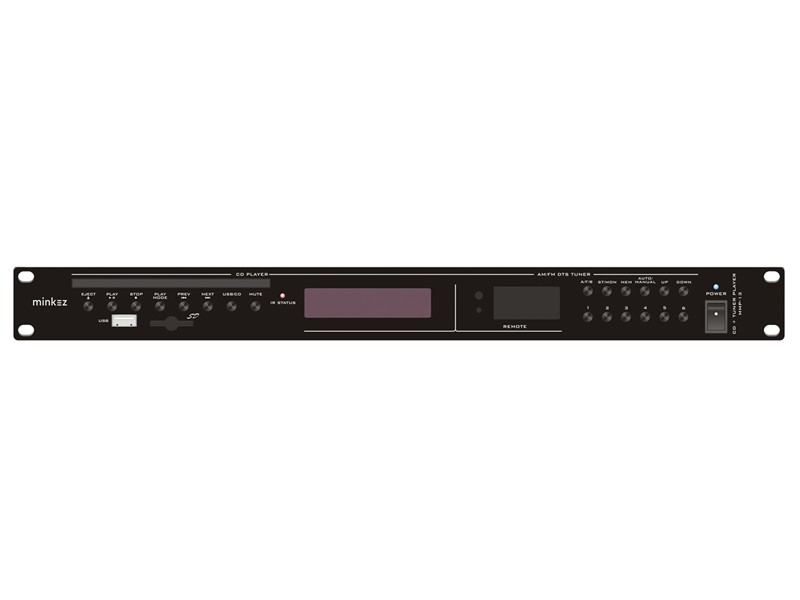

- Standard cabinet-type design (1U), black alumina brushed panel, humanized drawing, exquisite craftsmanship, showing a high-grade temperament.
- Built-in USB interface / SD card slot, CD movement and radio, Bluetooth four audio sources, CD player and MP3 player share one channel output, radio and Bluetooth share one channel output.
- CD uses high-end suction movement.
- The radio uses a high-sensitivity radio module; FM and AM (FM/AM) stereo two-band reception is optional and the radio frequency memory can be stored up to 99 bands.
- With infrared remote control function and can independently control the volume control.
| Brand | Minkez |
| Model | MMP-13 |
| Frequency Response | 20 Hz – 20 K Hz (- 2 dB) |
| THD | <= 0.1 % |
| Channel Separation | 65 dB |
| Dynamic Range | 75 dB |
| S/N Ratio | 85 dB |
| CD-Audio Output | 775 mV |
| Radio Frequency | FM: 87.5 – 108.0 M Hz; AM: 522 – 1620 K Hz |
| Antenna Input | FM: 75 Ohm, Unbalanced; AM: Low impedance round ring antenna |
| Sensitivity | FM: <= 10 uA; AM: <= 100 uA |
| Band Memory | 99 |
| Radio Audio Output | 775 mV / 600 Ohm |
| Power Supply | 220 V, 50 Hz |
| Dimensions | 240 x 155 mm |
| Weight | 2.1 kg |
