The Minkez MA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (16Ω – 4Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.
Features:
- Build-in MP# player, USB function, FM Radio and Bluetooth with remote controller.
- Built-in Class D amplifier module and switching power, with 70V / 100V transformer technology.

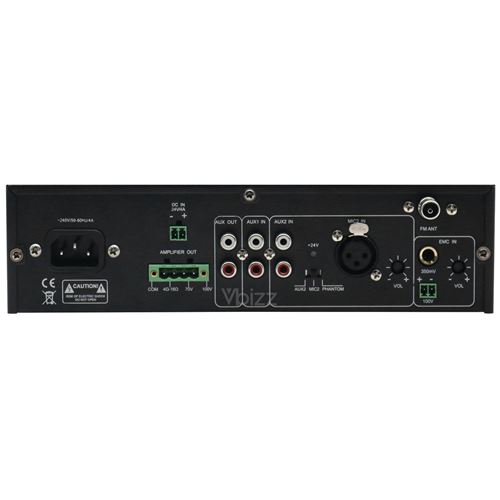

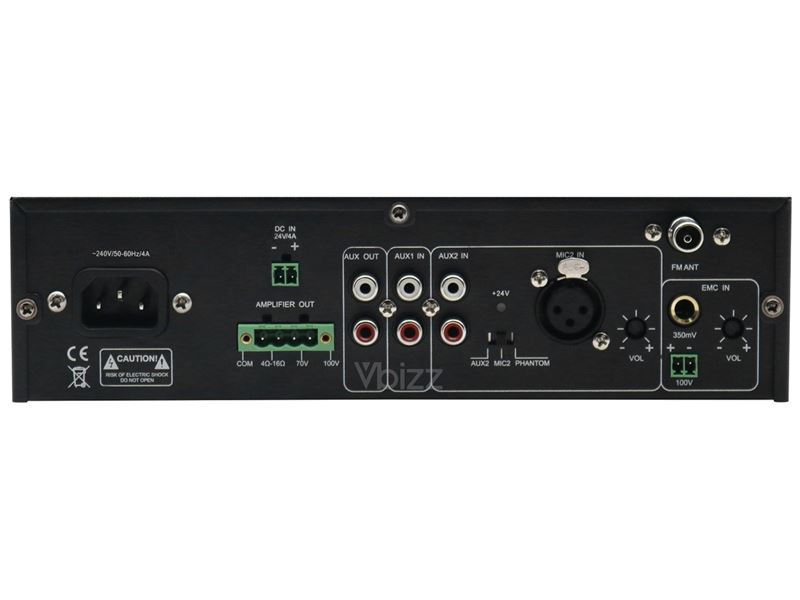

- 2 MIC inputs, 2 EMC inputs, 2 line inputs and 1 line output.
- LED indicators for power, clip, protect and signal.
- Speaker output of 100V or 70V and 4 to 16 Ohm.
- Support infrared remote control.
- Support both AC100 – 240V and DC 24V power supply.
- With priority function, priority is EMC / MIC1 > AUX1 / AUX2 / MIC2

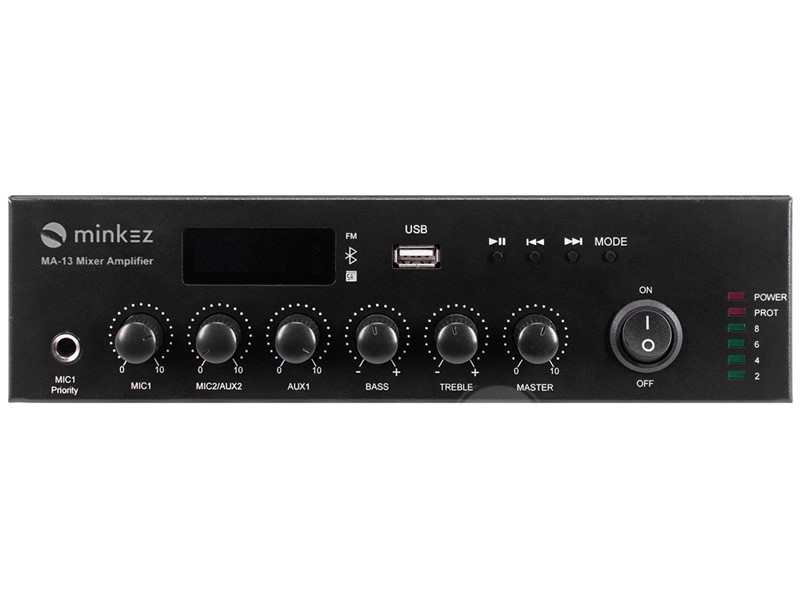

- With master volume control, individual volume control of MIC and Line, treble and bass volume control.
| Brand | Minkez |
| Model | MA-13 |
| Power Supply | 240 V / 50 Hz / 60 Hz |
| MIC1 Input Sensitivity | 10 mV +- 1 mV |
| MIC2 Input Sensitivity | 10 mV +- 1 mV |
| AUX1 Input Sensitivity | 360 mV +- 20 mV |
| AUX2 Input Sensitivity | 360 mV +- 20 mV |
| EMC Input Sensitivity | 360 mV +- 20 mV |
| MIC Frequency Response | 180 Hz – 10 K Hz (+- 3 dB) |
| AUX Frequency Response | 70 Hz – 16 K Hz (+- 3 dB) |
| Noise | < 10 mV |
| Distortion | < 1 %, 1 K Hz |
| Treble Adjustment | 10 dB (+- 2) |
| Bass Adjustment | 10 dB (+- 2) |
| Rated Power Supply | AC 240 V |
| Speaker Outputs | 120 W, 4 Ohm, AC 240 V |
| Interface Output Voltage | 70 V, 100 V (Constant Voltage Output) |
| Machine Size | 247 x 198 x 66 mm |
| Packing Size | 343 x 302 x 121 mm (1 PC) |
| Maximum Packing Size | 630 x 355 x 283 mm (4 PC) |
| Net Weight | 3 kg |
| Gross Weight | 3.7 kg (1 PC) |
