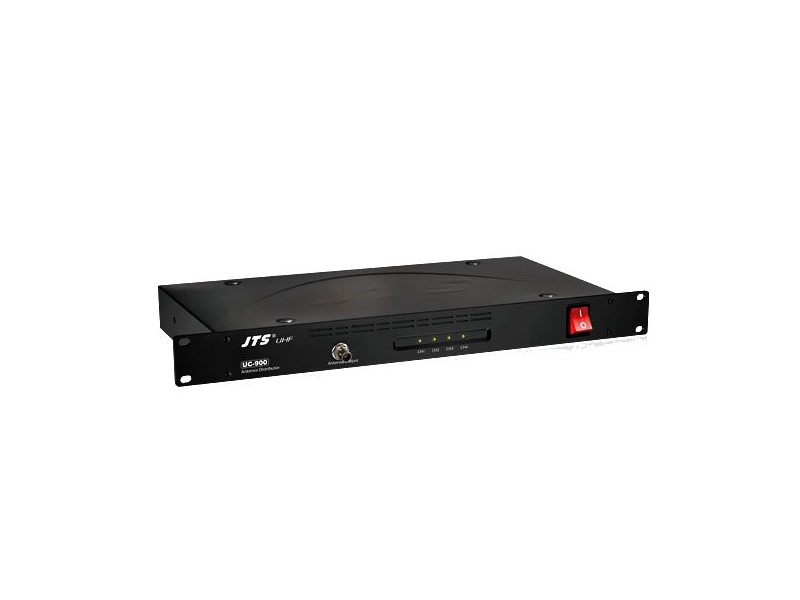

This 4 inputs and 1 output antenna combiner is compatible with transmitters like SIEM-2T, TG-10STX, TG-10GSTX and other transmitters with BNC antenna connecters. It is designed to improve RF performance by reducing intermodulation distortion. This product will also help to save investment in antenna systems. * Provides 4 DC outputs each of 12 V x 800 mA for 4 sets of transmitters.
| UC-900 | |
| Frequency Range | 470~970 Mhz |
| Full System Gain | 0dB(±2dB) |
| VSWR Input / Output | 1.5:1 |
| RF Input Power | +20dBm (100mW) |
| Input Signal Indicator Threshold | +5dBm |
| Power Consumption | 6W |
| Input/Output Connectors | BNC female
(4 input at back,1 output at front) DC female (4 input, Maximum Power OutputLimit at 12V/1A) |
| Input Voltage | 100~240VAC MAX2A 50/60Hz |
| Dimensions | 480 (W) * 45 (H) * 260 (D) |
| Wieght | 2.3kg |
