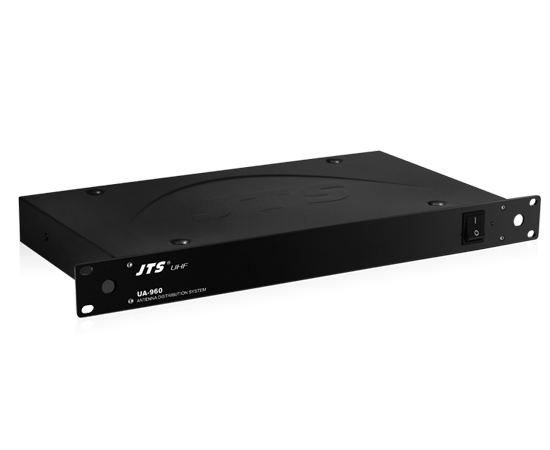

The JTS UA-960 is a full range UHF antenna splitter that routes antenna signals from a pair of
antenna to several receivers in a multi-channel system. The UA-960 also amplifies the RF signals to compensate the loss incurred from splitting signal power. Bulit-in DC distribution provides four DC 12V power supply for receivers. A single UA-960 can support up to four wireless receiver. Multiple UA-960 can be cascaded for more wireless receivers. * 1 extra BNC socket that can be easily cascaded with another antenna distributor.| UA-960 | |
| Frequency Range | 470-960 MHz |
| RF Output Level(Gain) | 3 dB ± 2 |
| Cascade output level | 0dB ~ +2dB |
| Output Connection Isolation | ≥ 25 dB |
| Third Order Intercept Point | 24 dBm |
| Impedance | 50 Ohm |
| Power Consumption | 60W |
| Input AC Voltage | 100 ~ 240 V switching power |
| Output DC Voltage | +12V ---1A x 4 |
| Antenna Booster DC Voltage | 12V |
| Dimension | 480(W)*45(H)*250(D) mm(standard
19" and 1 U case) |
| Net Weight | 2.15 Kgs |
