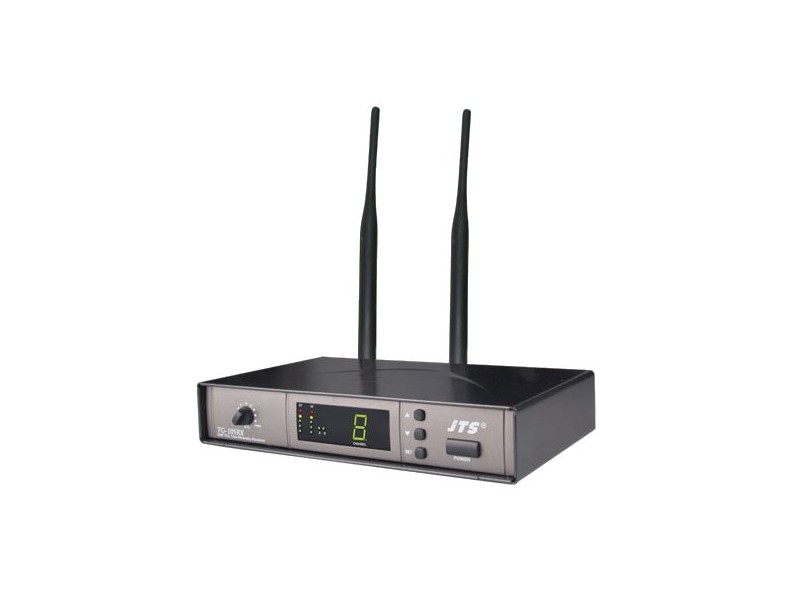

The TG-10SRX, true diversity receiver is compatible with TG-10T. It can receive the signal from TG-10T and deliver it for PA, recording and other processes.
| TG-10SRX | |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 502~960 MHz |
| S/N ratio | > 105dB |
| T.H.D. | <0.6%@1KHz |
| Display | LED |
| Display Contents. | AF Level, Channel |
| Controls | Power On/Off, Channel, Audio Level |
| Audio Output Level | -12dB |
| AF Output Impedance | 600Ω |
| Squelch. | Pilot Tone & Noise Mute |
| Operation Voltage | 12-18 VDC, 350 mA |
| Output Connector | 1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack |
| Dimension(m/m | 212mm (W)* 40mm (H)* 125mm (D) |
