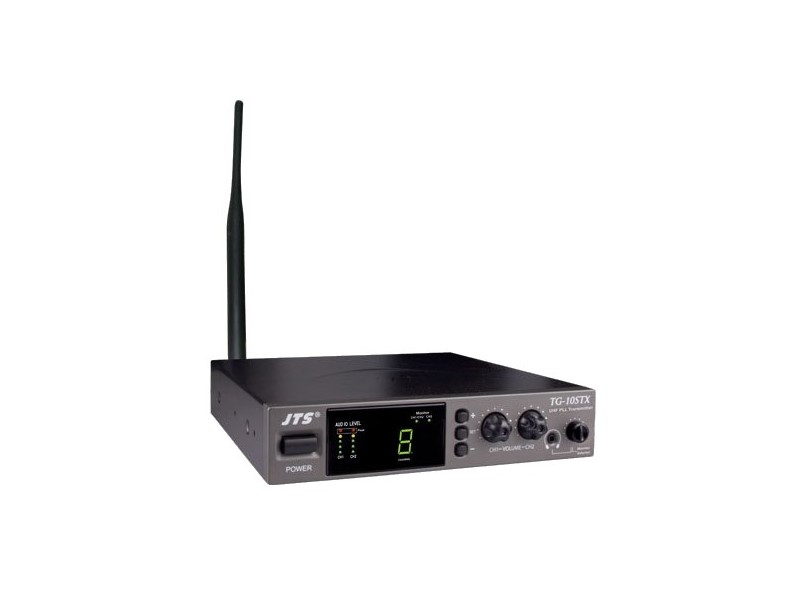

This stationary transmitter TG-10STX provides an option for fixed installation to the TG-10. It can expand coverage of the wireless system by using antenna booster, directional antenna and antenna combiner.
| TG-10STX | |
| Carrier Frequency Range | 502~960MHz |
| 3x Frequency Range | 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) |
| RF Output Power | Hi / Low |
| Nominal Frequency Deviation
(modulation) |
±40KHz
|
| Audio Input Impedance | 20KΩ |
| Nominal Input Level | -20 dBV |
| Maximal Input Level | 0 dBV |
| LED Display | AF Level, Channel |
| Audio Input Connector | 2 x Balanced XLR / Ø6.3mm Combo input
Ø6.3mm monitor input |
| Output Monitor Connector | 1 x Ø3.5mm phone Socket |
| Loop Out Connector | 2 x Ø6.3mm Balanced Loop Out Socket |
| Operation Voltage | 12-18 VDC, 450 mA |
| Dimension(m/m) | 212mm (W)* 44mm (H)* 239mm (D) |
| Channel | 16 selectable channels |
