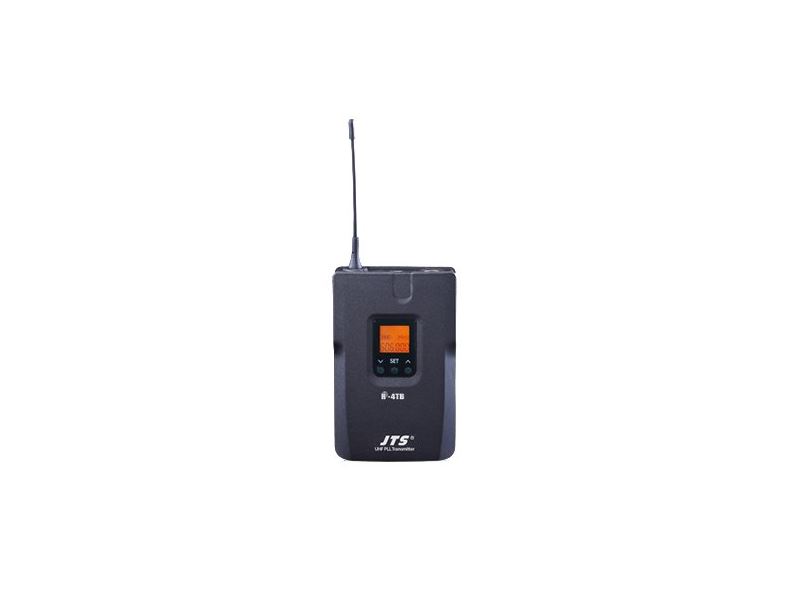

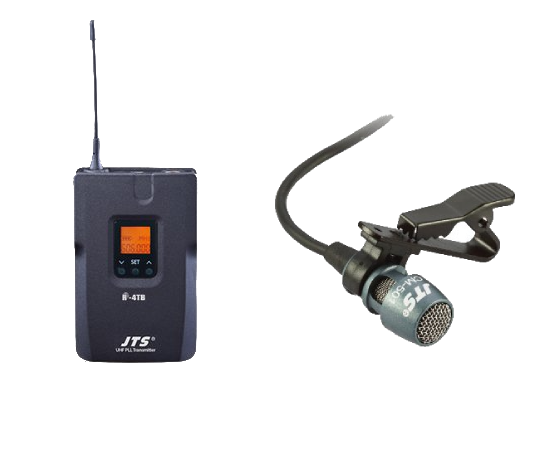

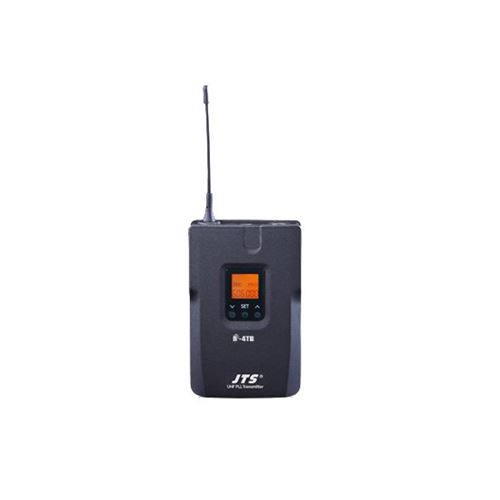

R-4TB
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between
Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
NEWEST FEATURE:
* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

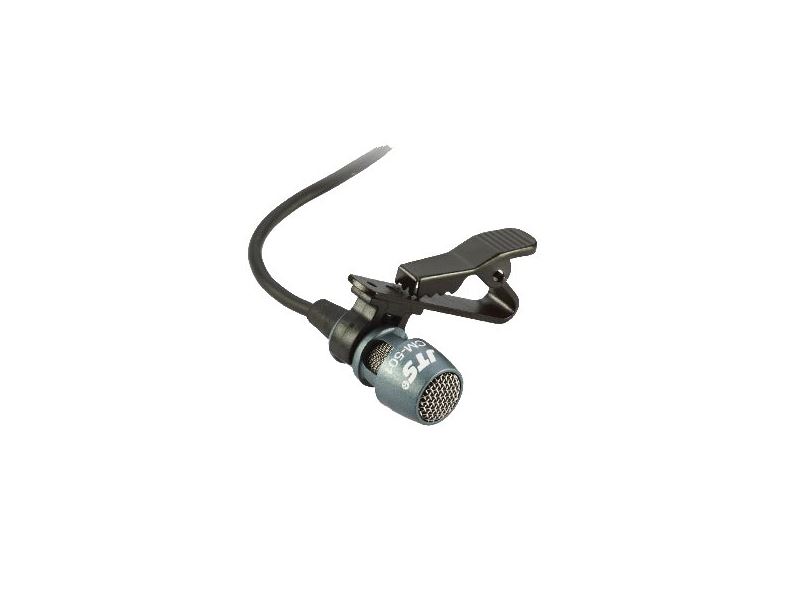

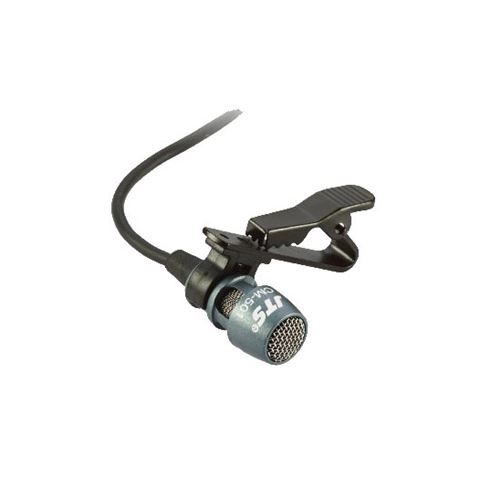

CM-501
* Uni-direction for high-quality voice pick-up.* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.
* Together with clip for easy attaching to a tie, lapel, dress etc.
| R-4TB |
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | UHF 470~960 MHz |
| Bandwidth | 108MHz Wideband |
| RF Outputs | Low / High |
| Stability | < ±10KHz |
| Frequency Deviation | ± 48KHz (Peak) |
| Chassis | Plastic |
| LCD Display | Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust |
| Controls | Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Output Connector | 4P Mini XLR |
| Spurious Emissions | <-50 dBC |
| Audio Frequency Response | 50Hz ~ 18k Hz |
| Battery | UM3, AA x2 |
| Dimensions | 62.3mm (W) x97.5mm (H) x20mm (D) |
| Weight | 75g |
