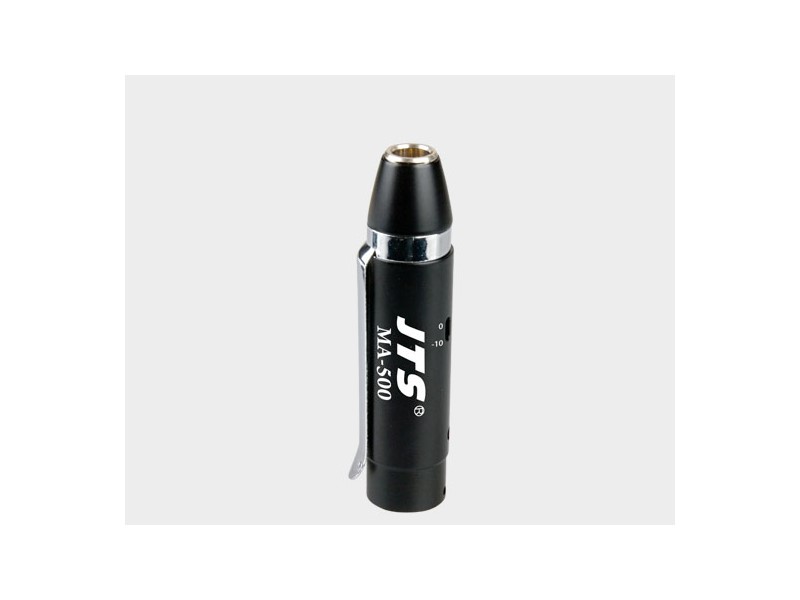

This product provides power to miniature condenser microphones through phantom power. It works with CM series condenser microphones and part of CX series microphones with mini XLR connector. MA-500/MA-500E can be powered by JTS’s PS-1, Phantom Power Supply or 12V to 48V phantom power from other devices.
| MA-500 | |
| MIC Input | 4P Mini XLR(Male) |
| Output. | XLR(Male) |
| Phantom Power | 12~48V |
| PAD | -10dB |
| Low Cut | 100Hz -6dB
400Hz -4dB |
| Frequency Response | 30~20,000 Hz |
| Impedance | 220Ω |
| T.H.D. | <0.045%@1KHz -50dB |
| S/N. | >95 dB |
| Weight | 40 grams |
| Dimensions(mm) | Ø20mm*84.5mm(H) |
