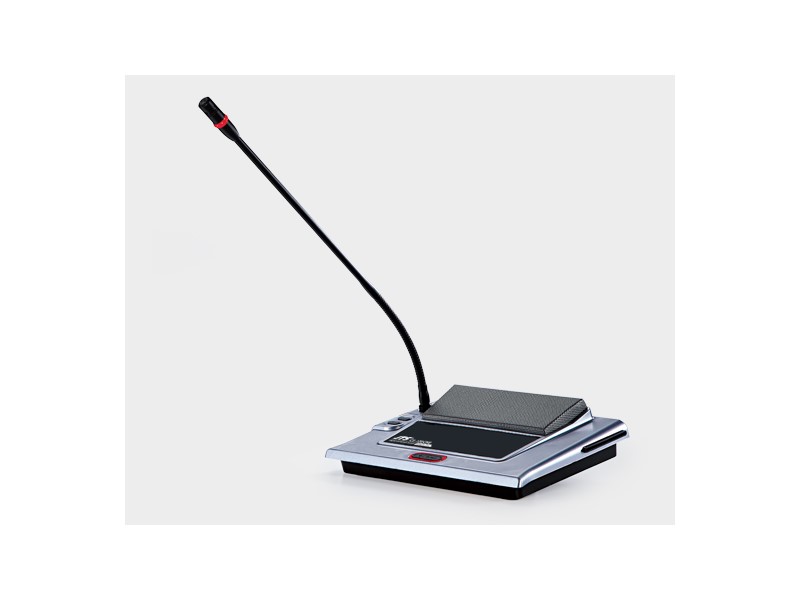

CS-120CHE is a simplified version of CS-120CH by removing voting function.
| CS-120CHE | |
| Output frequency response | 40-16000Hz |
| Earphone load | >16 Ω |
| Earphone volume | 10 mV |
| Earphone output | φ 3.5mm stereo jack |
| Max. power consumption | 1W (without 256x64 LCD) |
| Connection | 7P-DIN dedicated cable with buckle |
| Microphone Type | Uni-directional electret condenser microphone |
| Sensitivity | -46 dBV/Pa |
| Frequency response | 80-18000Hz |
| Input impedance | 2kΩ |
| Directivity 0°/180° | >20 dB(1kHz) |
| Equivalent noise | 25 dBA (SPL) |
| Maximum sound pressure level | 125 dB (THD<3%) |
