The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination.
Full feature design includes :
* Daisy-chain with unlimited number of the mixer
* Three operation modes: one-channel-at-a time, all active or override
* Switchable inputs accept microphones or line level devices
* Switchable output levels between mic. and line level
* Individual gain control and phantom power for each channel
* Last In stays on for continuous ambience sound
* Control voltage provided to trigger external device such as speaker switching and camera switching
The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms.

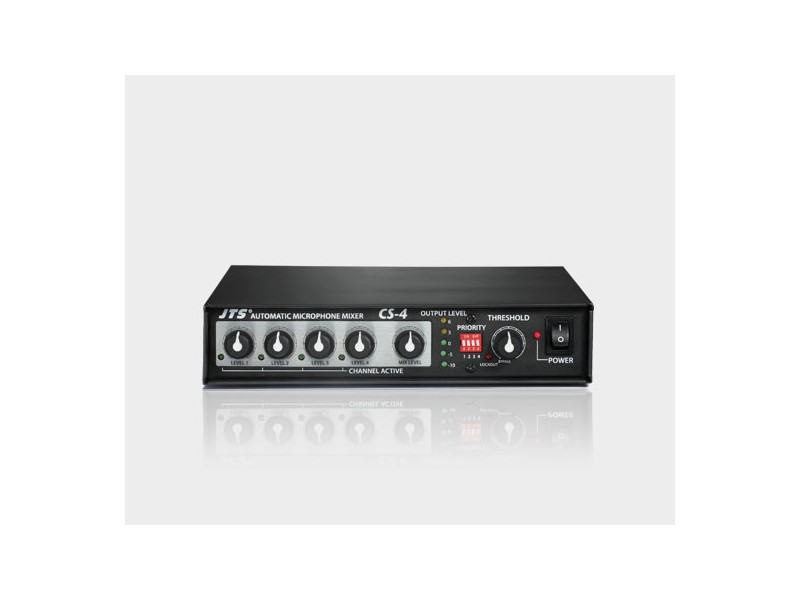

| CS-4 | |
| Power Supply | 16VDC, 100mA (The attached adapter, 12V, 600mA, isn’t full-loaded, so it can provide enough voltage +16VDC to the Automatic mixer.) |
| Power Consumption | 4.6 Watt (include Adapter) |
| Fuse | T0.5AE 250V |
| Impedance Input | 0 |
| Type | XLR |
| Mic | 4.7KΩ |
| Line | 20KΩ |
| Output | |
| Type | XLR |
| Mic | 300Ω |
| Line | 200Ω |
| Maximum Output Level | |
| Line | >+19 dB |
| Maximum Gain | ≥70dBm |
| Internal Controls | |
| Mic/Line attenuation | -50dB |
| Phantom Power | +12V |
| Pad | -10dB |
| MIC Attenuation | -10dB, -15dB, -20dB |
| Output Attenuation | -50dB |
| Frequency Response | 35~20,000Hz ±2dB |
| THD% Input(1 KHz -50dB) | <0.06% |
| Signal-To-Noise Ratio | >70dBm |
| Voltage Output | +4VDC±0.3V |
| Weight | 1.41 kg |
| Dimensions | 212mm(W)*44mm(H)*212mm(D) |
