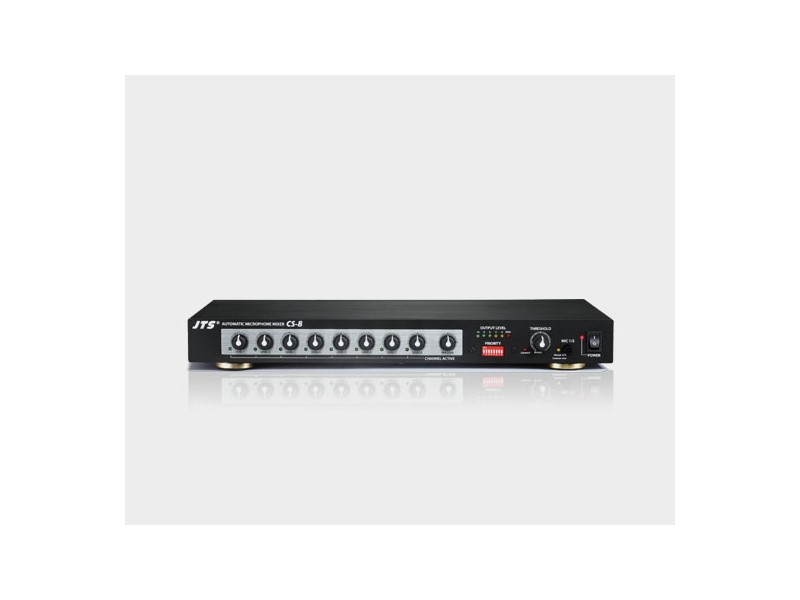

The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination.
Full feature design includes :
* Daisy-chain with unlimited number of the mixer
* Three operation modes: one-channel-at-a time, all active or override
* Switchable inputs accept microphones or line level devices
* Switchable output levels between mic. and line level
* Individual gain control and phantom power for each channel
* Last In stays on for continuous ambience sound
* Control voltage provided to trigger external device such as speaker switching and camera switching
The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms.
| CS-8 | |
| Input | |
| Type | XLR |
| Mic | 4.7KΩ |
| Line | 20KΩ |
| Output | |
| Type | XLR |
| Mic | 300Ω |
| Line | 200Ω |
| MAX Output Level | >17dB |
| MAX Gain | >70dB |
| Frequency Respond | 35~20,000 Hz |
| THD% | <0.06% |
| Signal-to-noise radio | >70 dB |
| Input Attenuation | -50dB |
| Phantom Power | +48V |
| Mic In Attenuation | -10dB / -20dB |
| Mic Attenuation | -10dB / -15dB / -20dB |
| Output Attenuation | -50dB |
| Voltage Output | +4VDC ±0.3V |
| Power Supply | 18VDC, 1A |
| Power Consumption | 13.5W |
| Fuse | T0.5AE 250V (Slow-Blow) |
| Weight | 2.25 kg |
| Dimensions | 420mm(W)*44mm(H)*198.5mm(D) |
