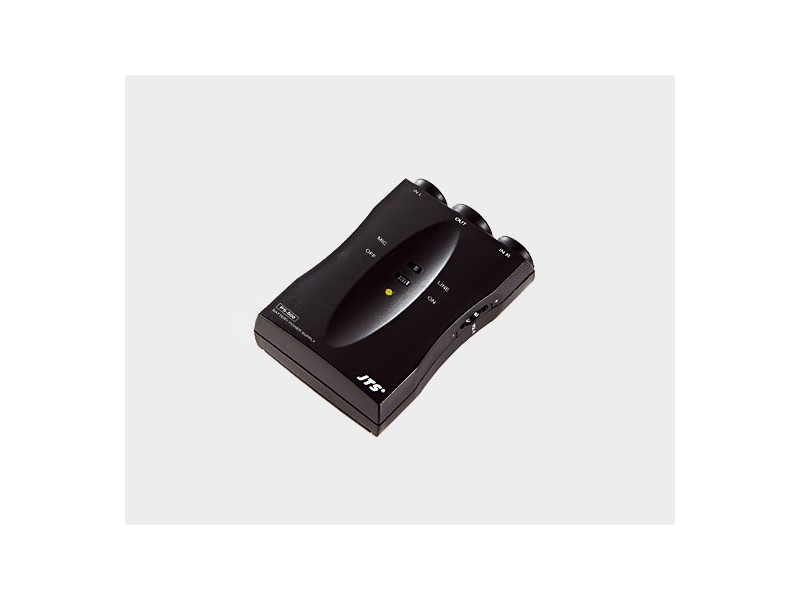

The JTS PS-500 is a 9V battery operated phantom power supply with two mini XLR(M) inputs and one XLR(M) output. It also works as a mini mixer for JTS CX and CM series condenser microphones with volume controls for input channels 1 & 2. A Mic/Line switch also allows mixing of Line signals.
| PS-500 | |
| Frequency Response | 20~20,000 Hz |
| Power Supply | Batt. Power 9V |
| Current Consumption | max. 10 mA |
| Input Impedance | 5 k Ω |
| Output Impedance | 200 Ω unbalanced |
| Input | 4P Mini XLR(M) (2 channels) |
| Output. | 3P XLR(M) |
| Dimension(m/m) | 92mm(W)* 23mm(H)* 65mm(D) |
