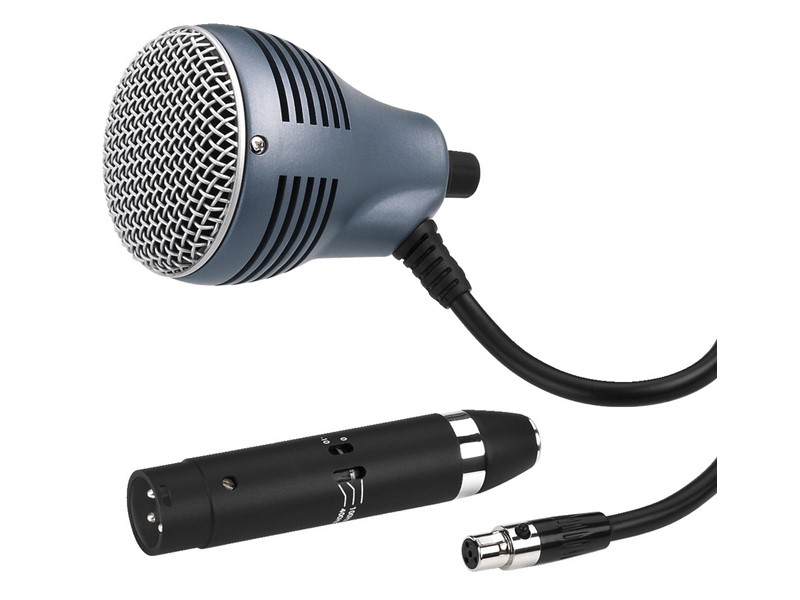

Equipped with capsule from JTS legendary D-25 family the CX-520 is a professional harmonica microphone. The smooth frequency response and wide dynamic range assures CX-520 ideal for both diatonic and chromatic harmonica. The contoured mic body renders a player finding an ideal resonant cavity easily for her or himself.
‧Supercardioid pick up pattern
‧Low noise metal body
‧Steel mesh with designed windscreen efficiently handles breath blasts.
‧On/Off and volume switch
Good for :
* Harmonica
* Vocal
* Flute
* Percussion
| CX-520 | |
| Type | Moving Coil Dynamic |
| Frequency Response | 50~16,500 Hz |
| Polar Pattern | Supercardioid, rotationally Symmetrical about microphone axis,uniform with frequency |
| Sensitivity(at 1,000Hz) | -78±3dB*(0.125mV)*0dB=1V /μbar |
| Impedance | 600Ω |
| Connector | 4P Mini XLR |
| Cable Length | 1.5m |
| Net Weight | 263 grams(excluding cable) |
| Standard Accessory | MA-500 |
| MA-500 | |
| MIC Input | 4P Mini XLR(Male) |
| Output. | XLR(Male) |
| Phantom Power | 12~48V |
| PAD | -10dB |
| Low Cut | 100Hz -6dB
400Hz -4dB |
| Frequency Response | 30~20,000 Hz |
| Impedance | 220Ω |
| T.H.D. | <0.045%@1KHz -50dB |
| S/N. | >95 dB |
| Weight | 40 grams |
| Dimensions(mm) | Ø20mm*84.5mm(H) |
