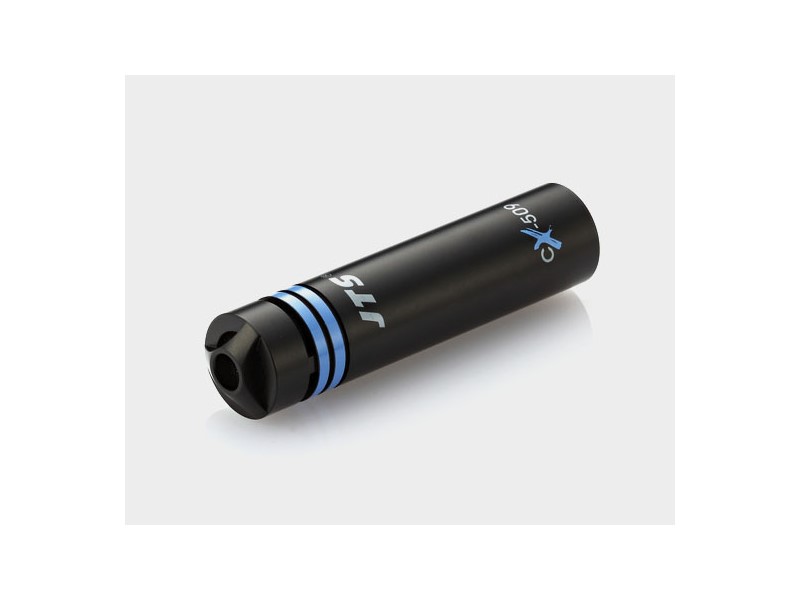

The JTS CX-509 Condenser Microphone is a compact low profile microphone designed for versatile placement around the sound source. Its wide frequency response, low noise characteristics, low distortion have made the JTS CX-509 a popular choice in studio and performance applications. Excels as an Overhead Cymbal and Hi-Hat microphone as well as for Tom Toms, Percussion, and Acoustic Guitars.
| CX-509 | |
| Type | Uni-directional Condenser |
| Frequency Response | 30~18,000 Hz |
| Sensitivity (at 1,000Hz) | -65dB*(0.56mV)*0dB=1V/μbar |
| Impedance | 220Ω |
| Max. SPL for 1% T.H.D. | 130 dB |
| Signal-To-Noise Ratio | 70dB |
| Output Connector | 3P XLR(M) (power module) |
| Phantom Power Requirements | 9-52 VDC |
| Current Consumption | ≤3mA |
| Weight | 60 grams (2.11oz) |
| Dimensions | Ø19mm (W)* 79mm (H) |
