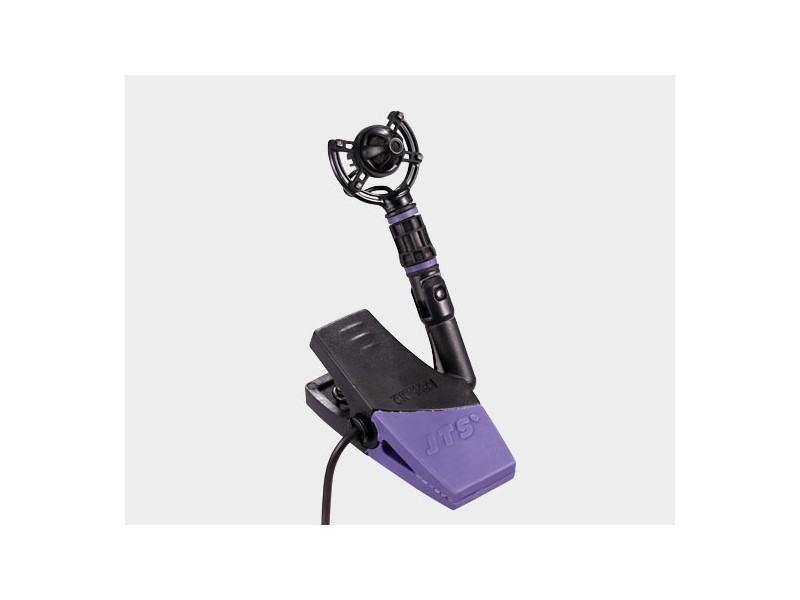

With a smooth uniform frequency response, the JTS CX-506 is optimized for use with drums and percussion instruments.
* The unique design and miniature profile provides for minimal physical size interference for the musician.
* Low noise electronic circuitry together with balanced output provides isolation from ambient noise.
* The shock mount clamp greatly reduces extraneous mechanical noise and ensures secure mounting on drum rims, percussion instruments, and cymbal stands in either a horizontal or vertical position.
* Excellent natural reproduction of drums and percussion, accurately and purely without coloration.
* Newly added spider suspension isolates unwanted mechanical vibration effectively
| CX-506 | ||
| Type | Electret Condenser | |
| Frequency Response | 50~18,000 Hz | |
| Polar Pattern | Cardioid | |
| Sensitivity(at 1,000Hz) | -64dB*(0.63mV) at 1,000 Hz | |
| Output Impedance | 220Ω ± 30% | |
| Max. SPL for 1% THD | 130 dB | |
| Output connector | 3P. XLR (M) type | |
| Net Weight | Metallic enamel-painted die cast metal body
with hardened, matte-finished steel grille |
|
| Net Weight | 230 grams (8.1 oz) | |
| Touch Noise. | Super low | |
| Power Supply | 9-52V phantom power | |
