CX-500FHW

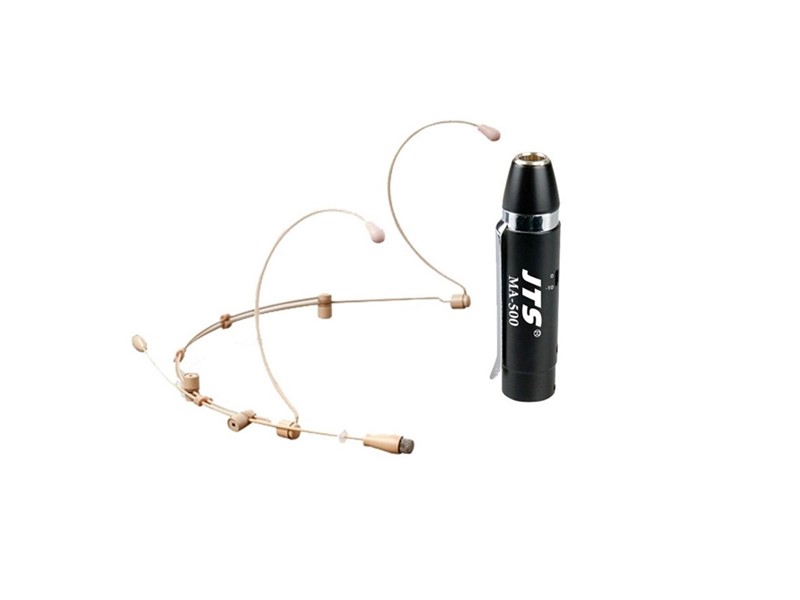

The CX-500FHW is built with full range omni-directional capsule with golden plating in and outside. The flat frequency response reproduces all types of flutes. The dynamic design of the headset can render a flutter inter change flutes freely. The option of left and right worn plus adjustable boom can help finding the best miking. CX-500FHW is bundled MA-500 phantom power adapter for wired application.
MA-500
This product provides power to miniature condenser microphones through phantom power. It works with CM series condenser
| CX-500FHW | |
| Type | Omni-directional Condenser |
| Frequency Response | 20~20,000 Hz |
| Sensitivity (at 1,000Hz) | -58±3dB*(1.25mV)*0dB=1V/μbar |
| Impedance | 1.5kΩ |
| Max.SPL for 1% T.H.D. | 130 dB |
| Signal-To-Noise Ratio | 68 dB |
| Output Connector | 4P Mini XLR |
| Power Supply | 1-5 VDC |
| Current Consumption | ≤0.5mA |
| Weight | 6.5 grams (including cable) |
| Dimensions(mm) | Ø6mm(W)*13mm(H) |
| Standard Accessory | MA-500 |
| MA-500 | |
| MIC Input | 4P Mini XLR(Male) |
| Output. | XLR(Male) |
| Phantom Power | 12~48V |
| PAD | -10dB |
| Low Cut | 100Hz -6dB
400Hz -4dB |
| Frequency Response | 30~20,000 Hz |
| Impedance | 220Ω |
| T.H.D. | <0.045%@1KHz -50dB |
| S/N. | >95 dB |
| Weight | 40 grams |
| Dimensions(mm) | Ø20mm*84.5mm(H) |
