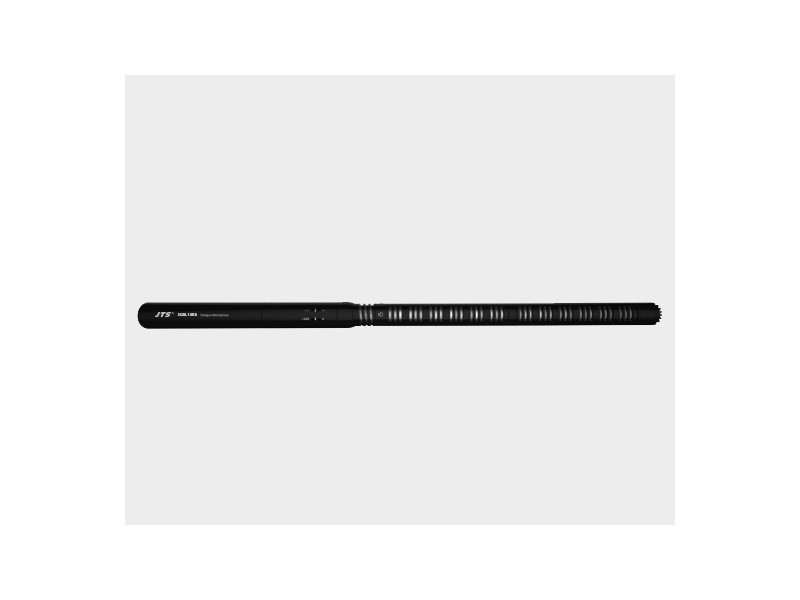

SGM-14KA
| SGM-14KA | |
| Type | Electret Condenser |
| Polar pattern | Hypercardioid |
| Frequency Response | 40 to 20,000Hz |
| Sensitivity(at 1,000Hz) (Phantom / Battery) | -58±3 dB (1.26mV) /
-59±3 dB (1mV) *0dB=1V /μbar |
| Low Frequency Roll-off | 180Hz |
| Impedance(Phantom / Battery) | Rated impedance is 500Ω / 600Ω |
| Max. SPL for 1% THD (Phantom / Battery) | 125dB / 110 Db |
| Signal To Noise Ratio | 70dB |
| Power Supply (Phantom / Battery) | 9~48VDC / 1.5V AA UM3 R6 |
| Current consumption(Phantom / Battery) | ≦2mA / 0.4mA (1200 hours typical) |
| Output Connector | 3P XLR (M) |
| Length | 355.7mm |
