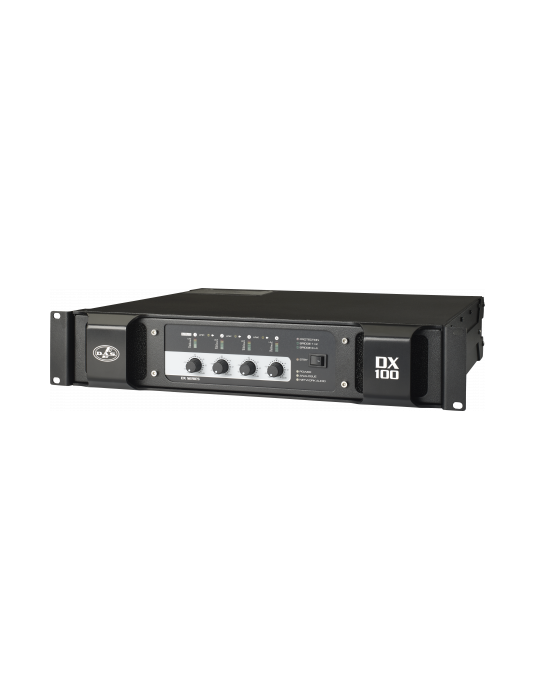

The DX-100 is a four channel amplifier offering 2700 W per channel at 4 ohms. It combines the impressive audio power and performance with ultra-flexible connectivity for both remote control and audio.
Accepting analogue, or optional Dante networked audio, this extra connectivity means that the DX Series non-DSP models can also be used in installation systems which already have a centralized DSP core but require the flexibility of being able to pick up multiple channels of audio from a network.
| Output Power Ratings | |
| Power 8 Ohms, Both Channels Driven | 4 x 1400 W |
| Power 8 Ohms Bridged | 5400 W |
| Power 4 Ohms, Both Channels Driven | 4 x 2700 W |
| Power 4 Ohms, Bridged | 7000 W |
| Electronics and Connectors | |
| Amplifier Channels | 4 |
| Output Circuitry | Class D |
| Frequency Response | 0.5 dB (20 Hz – 20 kHz) |
| Total Harmonic Distortion | < 0,1 % |
| Input Impeadance | 20 kohms |
| Voltage gain | 32 dB |
| Damping Factor | > 400 |
| Controls | Power On/Off, Gain Pots |
| Cooling | Front-to-Back |
| Amplifier Protections | Protection Present , Short Circuit, DC Output, Temperature |
| LED Indicators | Power On, Channel Output Level, Channel Linked, Protection, Bridged Pairs, Standby, Analogue Audio, Network Audio |
| Audio Signal Input Connector | 4 x Female XLR |
| Speaker Output Connector | 4 x speakON |
| Current Draw 230 V / 115 V | 7.5 A / 15.0 A |
| Certification Number | NRTL: NA201811002, CNEMKO: NA201811002 |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 88 x 485 x 425 mm |
| 3,5 x 19,0 x 16,7 in | |
| Net Weight | 10,8 kg ( 27,6 lb ) |
