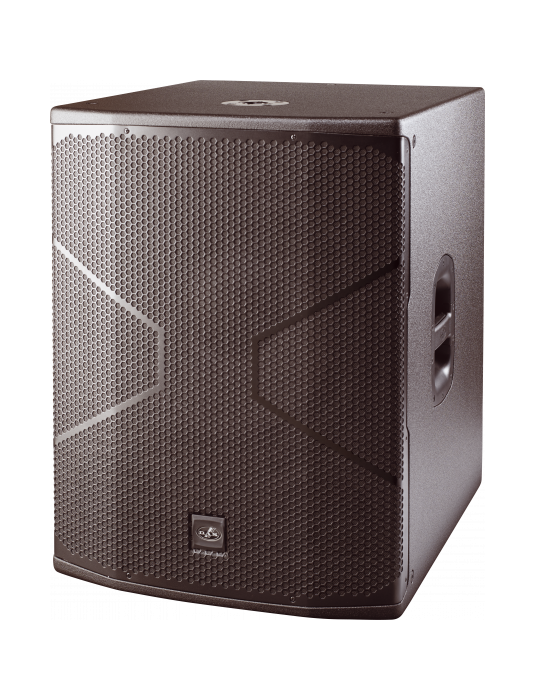

The VANTEC-18A is a powered subwoofer system designed to provide extended bass response for the Vantec-full range cabinets. A 2000 Wpeak advanced Class D amplifier drives a DAS 18LX-long excursion loudspeaker incorporates a 4″ voice coil for high power handling and output.

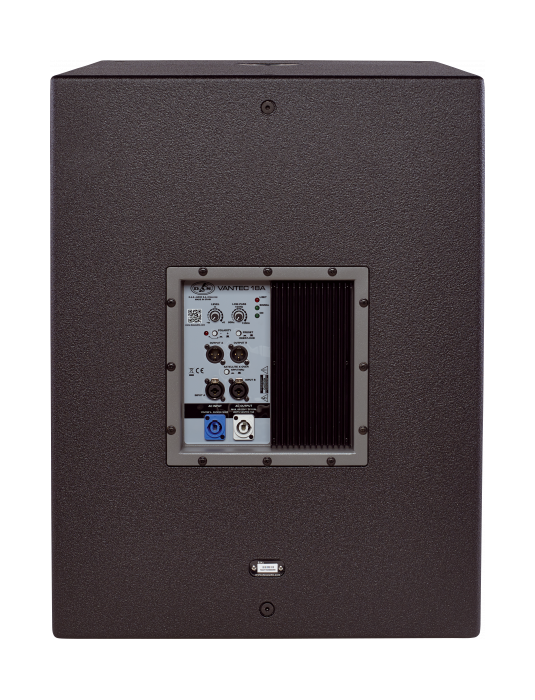

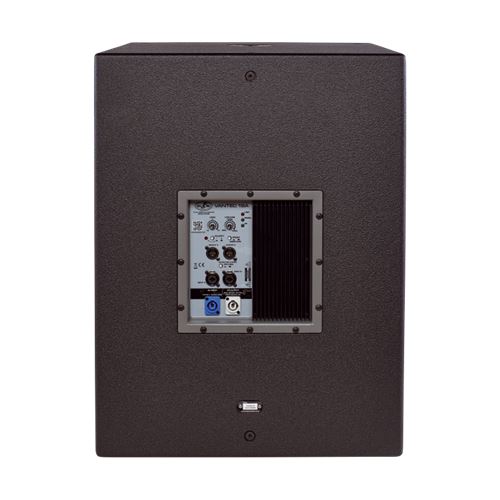

The VANTEC-18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec-satellite systems. The variable crossover ranges from 80 Hz 125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the VANTEC-18A to be used with satellite systems.
| Performance | |
| Frequency Range (-10 dB) | Loud: 35 Hz – 125 Hz – Deep: 30 Hz – 125 Hz |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1000 W |
| Nominal Amplifier Power (peak) | 2000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 3 V (+12 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.5 A/3.0 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 720 x 545 x 655 mm |
| 28,3 x 21,5 x 25,8 in | |
| Net Weight | 40,5 kg ( 89,2 lb ) |
| Components | |
| LF Driver | 18LX |
