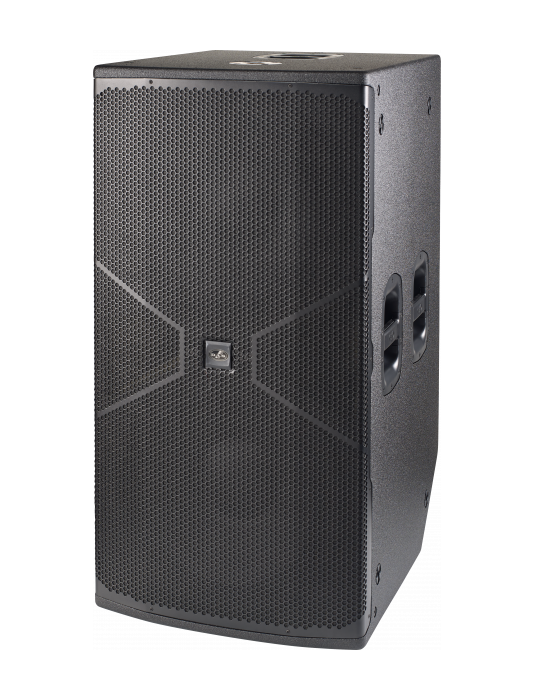

The VANTEC-218 bass system incorporates the legendary 18LX low frequency transducer with a 4” voice coil mounted as direct radiator into a bass-reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish.

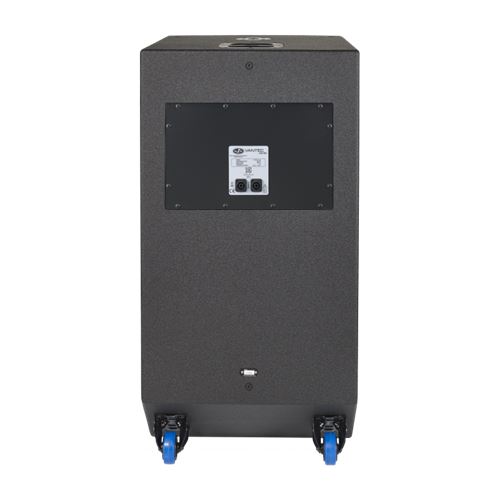

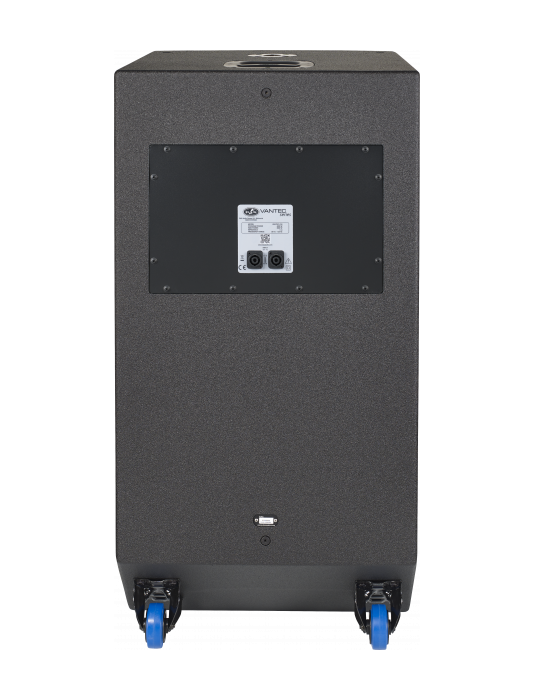

The VANTEC-218 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the VANTEC-218. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier.
| Performance | |
| Frequency Range (-10 dB) | 30 Hz – 125 Hz |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 2000 W |
| Peak Power Handling | 8000 W |
| On-axis Sensitivity 1W/1 m | 101 dB SPL |
| Maximum Peak SPL at 1 m | 140 dB |
| Recommended Amplifier | PA-4000 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 675 mm (26,6 in) |
| Dimensions ( H x W x D ) | 1.070 x 545 x 675 mm |
| 42,1 x 21,5 x 26,6 in | |
| Net Weight | 67,5 kg ( 149,0 lb ) |
| Components | |
| LF Driver | 18LX |
