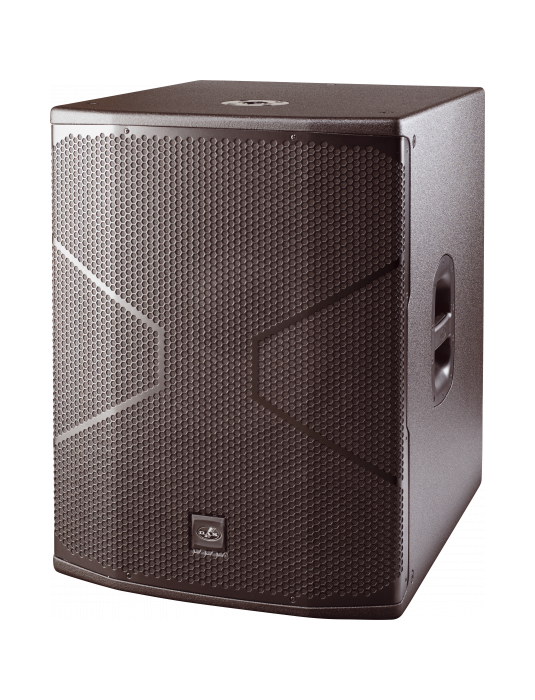

The VANTEC-18 bass system incorporates the legendary 18LX-low frequency transducer with a 4″ voice coil mounted as direct radiator into a bass reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish.
The VANTEC-18 is designed for use in biamped systems. A top located pole mount socket permits mounting full range systems above the Vantec-18 and two bar handles makes moving easy.
| Performance | |
| Frequency Range (-10 dB) | 45 Hz – 138 Hz |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 1000 W |
| Peak Power Handling | 4000 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 134 dB |
| Recommended Amplifier | PA-2700 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 655 mm (25,8 in) |
| Dimensions ( H x W x D ) | 720 x 545 x 655 mm |
| 28,3 x 21,5 x 25,8 in | |
| Net Weight | 35,0 kg ( 77,2 lb ) |
| Components | |
| LF Driver | 18LX |
