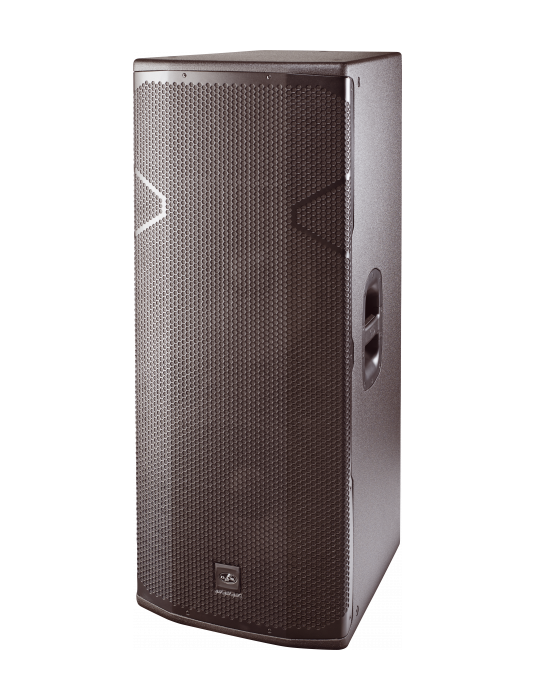

The VANTEC–215 is a 2 way passive full range loudspeaker utilizes two 15″ FV series bass loudspeakers for extra low frequency punch and higher SPL. High frequencies are handled by a 1″ FEM optimized compression driver. The trapezoidal cabinet is constructed using Birch plywood and protected with a hard wearing DAS ISO-flex black paint finish.

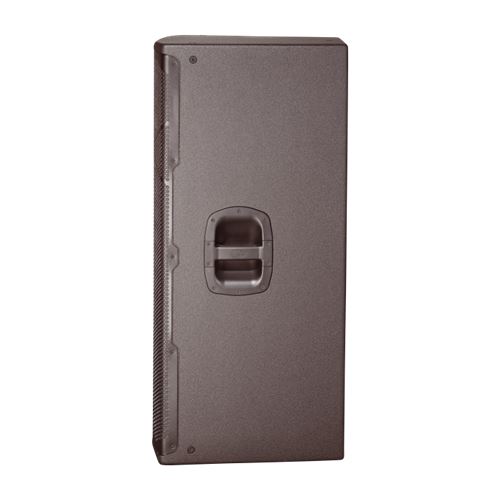

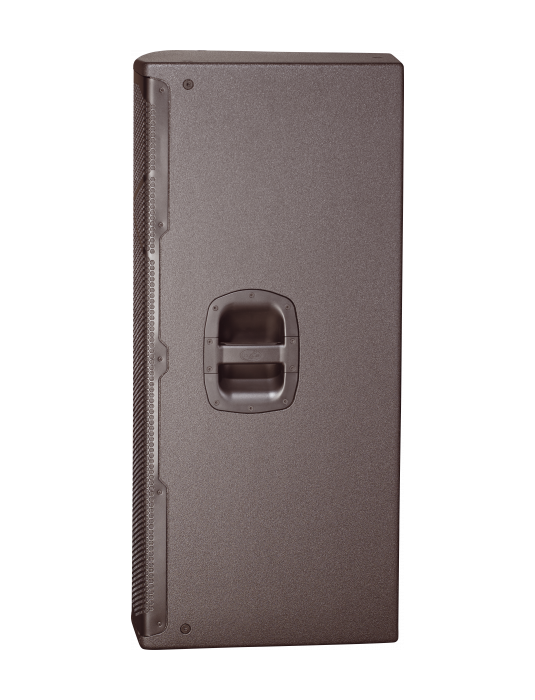

Two bar handles with soft rubber inserts and a steel grille sealed against corrosion using a polyamide powder coat finish are provided. Rigging points provide a safe and simple way to fly the VANTEC-215 cabinets.
| Performance | |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 50º |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 1000 |
| Peak Power Handling | 4000 |
| On-axis Sensitivity 1W/1 m | 102 dB SPL |
| Maximum Peak SPL at 1 m | 138 dB |
| Recommended Amplifier | PA-2700 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 505 mm (19,9 in) |
| Dimensions ( H x W x D ) | 1.090 x 445 x 505 mm |
| 42,9 x 17,5 x 19,9 in | |
| Net Weight | 42,0 kg ( 62,5 lb ) |
| Components | |
| LF Driver | 15FV |
| HF Driver | M-28 |
| Horn/Waveguide | BC-95 |
