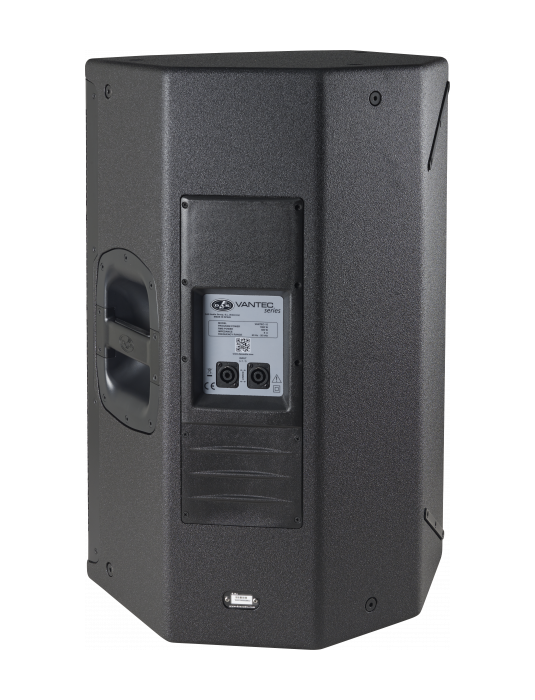

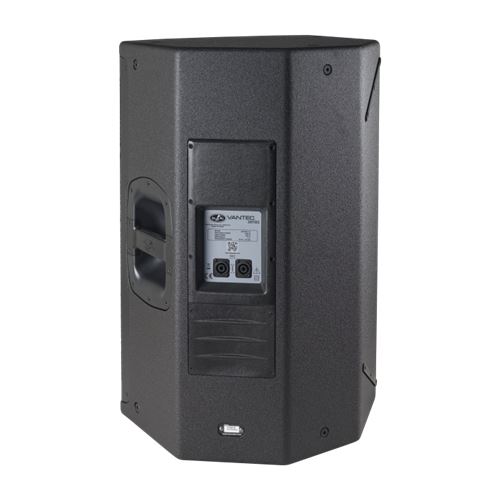

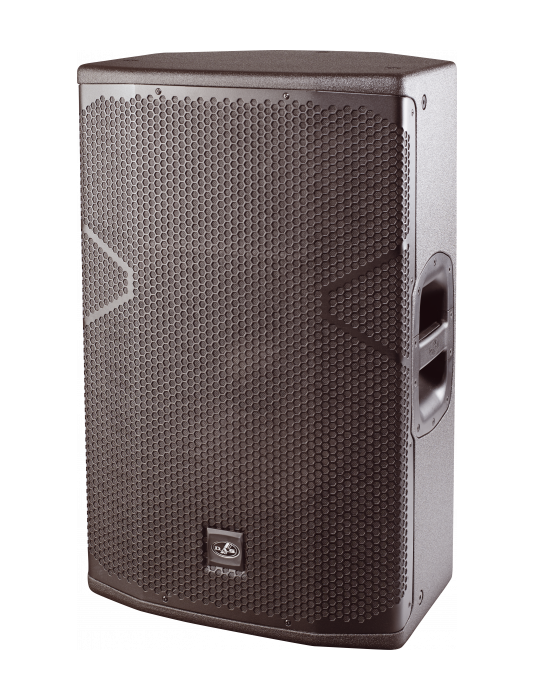

The VANTEC-15 is a 2 way passive full range loudspeaker that utilizes a 15″ FV series low frequency transducer and a 1″ FEM optimized compression driver.
The multi angle cabinet is constructed of Birch plywood protected by the DAS ISO flex black paint finish. Two bar handles with soft rubber inserts and a rugged steel grille are provided. A 35 mm tripod socket with dual angle (0º/10º) allows for stand mounting.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 50º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500 |
| Peak Power Handling | 2000 |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 135 dB |
| Recommended Amplifier | PA-1500 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 380 mm (17,5 in) |
| Dimensions ( H x W x D ) | 720 x 445 x 380 mm |
| 28,3 x 18,0 x 17,5 in | |
| Net Weight | 23,5 kg ( 51,8 lb ) |
| Components | |
| LF Driver | M-28 |
| HF Driver | 15FV |
| Horn/Waveguide | BC-95 |
