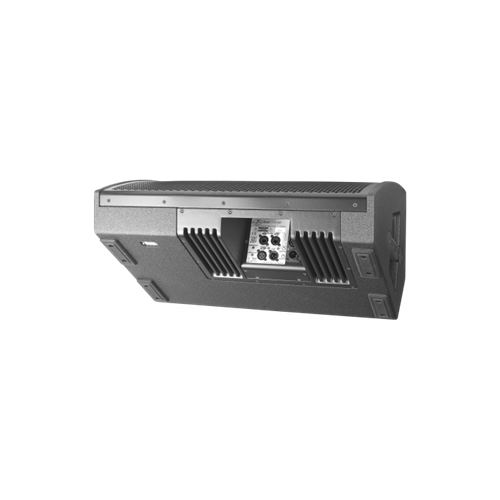

The ROAD-15ALT is a powered stage monitor that incorporates a 15R4 cone loudspeaker for bass reproduction. High frequencies are handled by an M-75 compression driver with 1.5” exit, a 3” titanium diaphragm and EFW voice coil.
The biamplified system uses a 3G Class “D” amplifier with 550 W powering the low frequency section and a 220 W powers the highs. The montior´s compact dimensions, attractive design and standard pole mount socket make it ideal for use as a pole mountable multi-purpose system.
| Performance | |
| Frequency Range (-10 dB) | 47 Hz – 23 kHz |
| Horizontal Coverage (-6 dB) | 40º |
| Vertical Coverage | 60º |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 550 W |
| Nominal Amplifier Power LF (peak) | 1100 W |
| Nominal Amplifier Power HF (continuous) | 220 W |
| Nominal Amplifier Power HF (peak) | 440 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.55 V (+6 dBu) |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.7 A/- |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 375 x 745 x 535 mm |
| 14,8 x 29,3 x 21,1 in | |
| Net Weight | 30,5 kg ( 67,3 lb ) |
| Components | |
| LF Driver | 15R4 |
| HF Driver | M-75 |
| Horn/Waveguide | BC-64AL |
