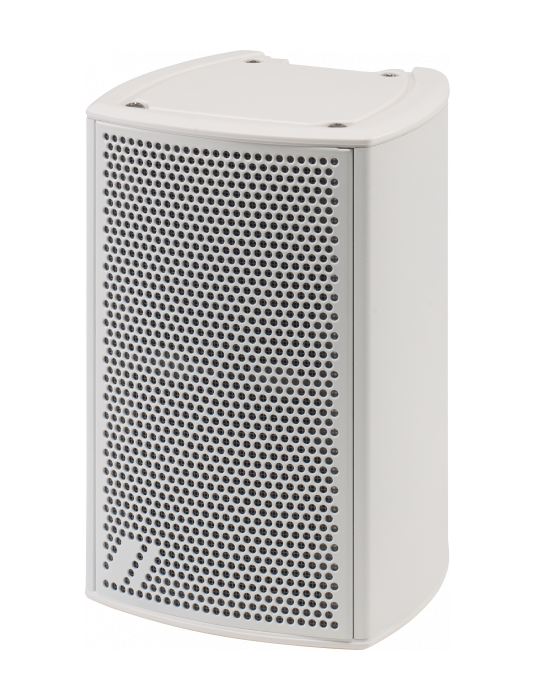

The Q-23 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.
The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.
| Performance | |
| Frequency Range (-10 dB) | 150 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 120º |
| Vertical Coverage | Switchable: 90º -70º |
| Nominal Impedance | 8 ohms |

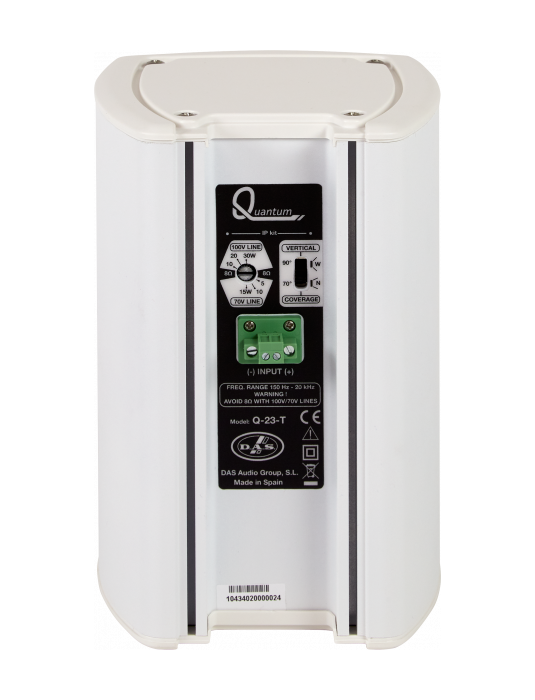

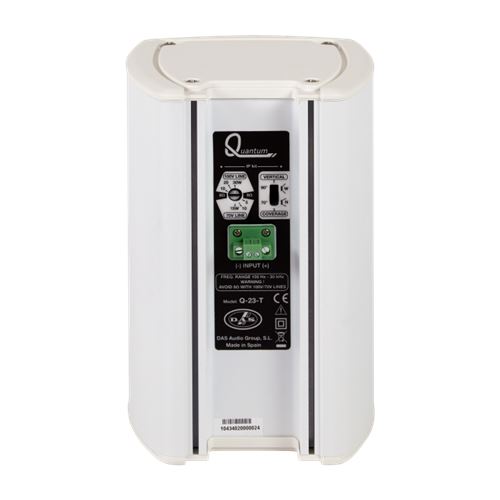

| Transformer Taps 70 V | 5 W – 10 W – 15 W |
| Transformer Taps 100 V | 10 W – 20 W – 30 W |
| RMS Power Handling | 40 W |
| Peak Power Handling | 160 W |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 112 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 |
| INTEGRAL-A404 | |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | 4-way Phoenix 2.54 mm |
| Enclosure | |
| Enclosure Construction | Aluminum |
| Color | White |
| IP Rating | IP66 |
| Depth | 125 mm (4,9 in) |
| Dimensions ( H x W x D ) | 190 x 125 x 125 mm |
| 7,5 x 4,9 x 4,9 in | |
| Net Weight | 2,8 kg ( 6,2 lb ) |
