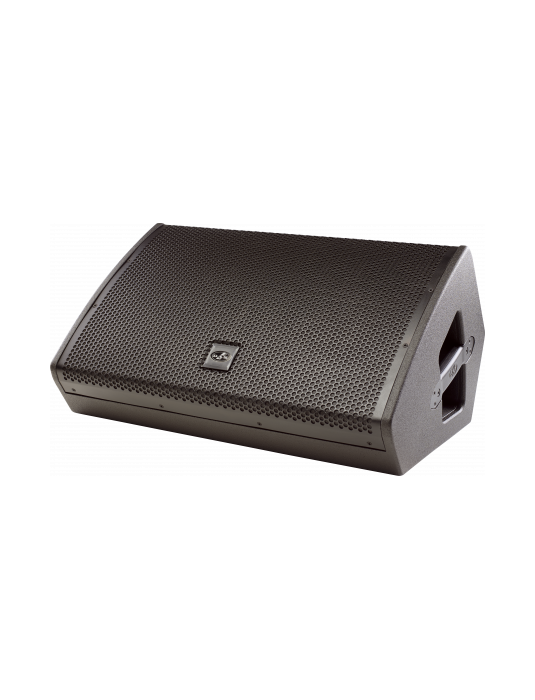

The EVENT-M210A is a three-way stage monitor in a double 10” “dual-band” configuration providing a wide frequency range. The DAS loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide.

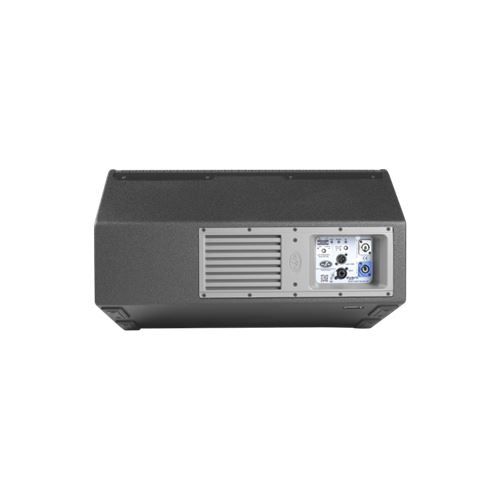

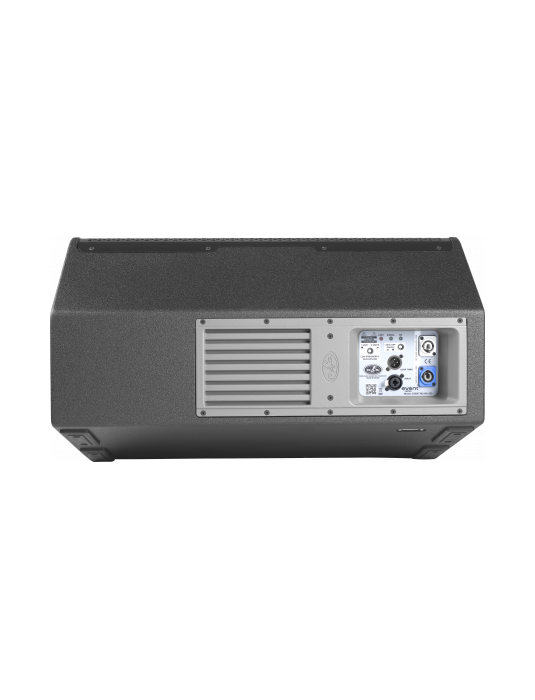

The EVENT-M210A wedge is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.
| Performance | |
| Frequency Range (-10 dB) | 70 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 60º |
| Vertical Coverage | 20ºUp/30ºDown |
| Maximum Peak SPL at 1 m | 132 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 180 W |
| Nominal Amplifier Power LF (peak) | 360 W |
| Nominal Amplifier Power MF (continuous) | 180 W |
| Nominal Amplifier Power MF (peak) | 360 W |
| Nominal Amplifier Power HF (continuous) | 180 W |
| Nominal Amplifier Power HF (peak) | 360 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.5 A/- |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | Captive Rigging System |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 340 x 650 x 460 mm |
| 13,4 x 25,6 x 18,1 in | |
| Net Weight | 23,5 kg ( 51,8 lb ) |
| Components | |
| LF Driver | 10MI4 |
| MF Driver | 10MI4 |
| HF Driver | M-60 |
| Horn/Waveguide | BC-632 |
