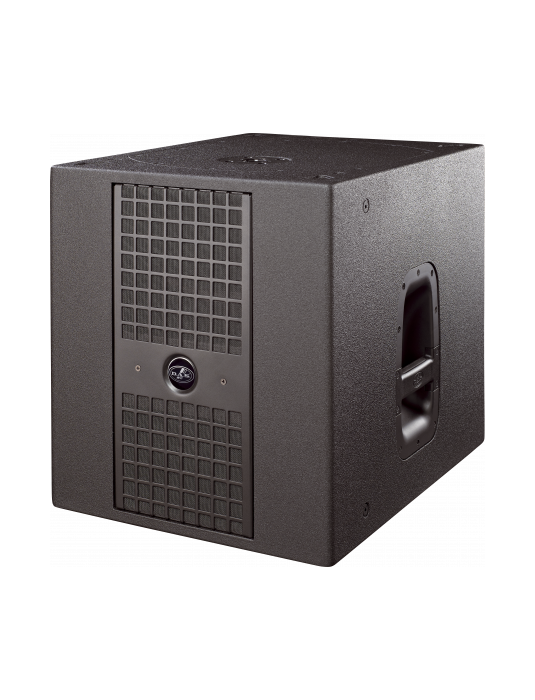

The Artec-S15A is a powered subwoofer system designed to provide extended bass response for the Artec-full range cabinets. A 2000 Wpeak Class D amplifier drives a D.A.S. 15SX bass loudspeaker. The 15SX loudspeaker incoporates a 4″ voice coil for high power handling and output. The subwoofer system includes two balanced inputs with stereo filtered output connections for Artec-satellite systems. The variable LPF ranges from 100 Hz 138 Hz.
| Performance | |
| Frequency Range (-10 dB) | 45 Hz -138 Hz |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1000 W |
| Nominal Amplifier Power (peak) | 2000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 2.0 A/- |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 515 x 465 x 585 mm |
| 20,3 x 18,3 x 23,0 in | |
| Net Weight | 31,0 kg ( 68,3 lb ) |
| Components | |
| LF Driver | 15LXN |
