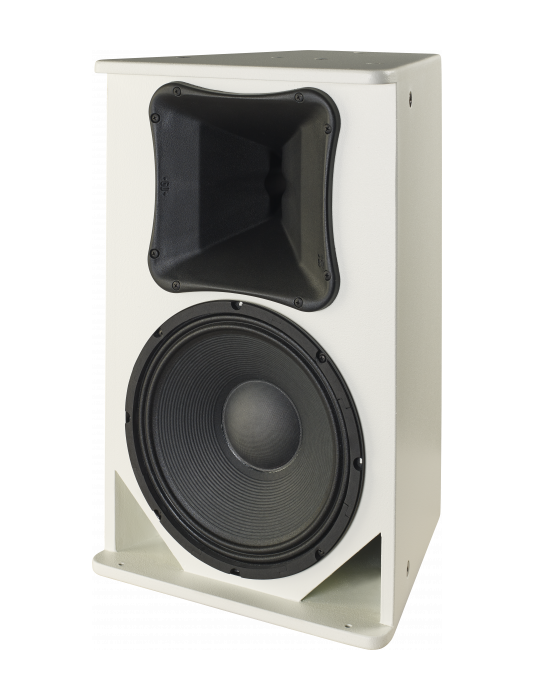

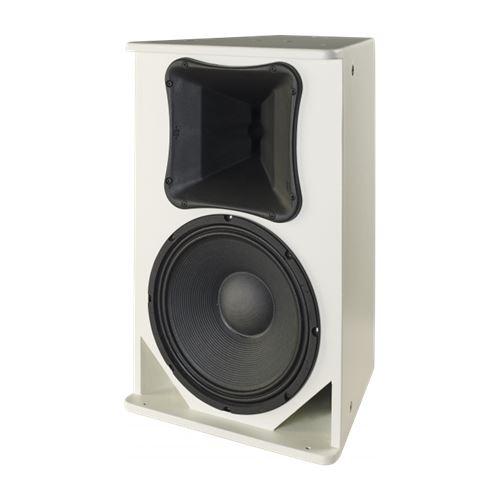

The ARTEC-312.96-W is a compact 2-way full-range loudspeaker system comprised of one 12″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics..
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration.
The cabinet is fitted with M10 threaded suspension points.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 300 W |
| Peak Power Handling | 1200 W |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 127 dB |
| Recommended Amplifier | PA-1500 |
| Recommended Processor | DSP-226 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | White |
| Depth | 375 mm (14,8 in) |
| Dimensions ( H x W x D ) | 615 x 385 x 375 mm |
| 24,2 x 15,2 x 14,8 in | |
| Net Weight | 19,0 kg ( 41,9 lb ) |
| Components | |
| LF Driver | 12MI |
| HF Driver | M-34 |
| Horn/Waveguide | BC-916 |
