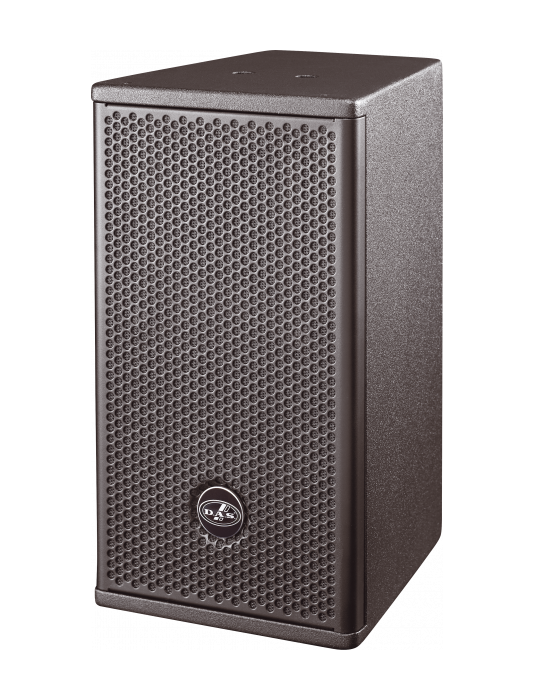

The ARTEC-308 2-way passive full range loudspeaker utilizes a 8″ low frequency transducer and the M-26 compression driver. The cabinet manufactured using top quality of Birch plywood and finished with a durable black paint finish. The 8″ woofer provides an exceptional bass response considering the cabinets reduced size.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 150 W |
| Peak Power Handling | 600 W |
| On-axis Sensitivity 1W/1 m | 92 dB SPL |
| Maximum Peak SPL at 1 m | 120 dB |
| Recommended Amplifier | PA-900 |
| Recommended Processor | DSP-226 |
| Connectors | |

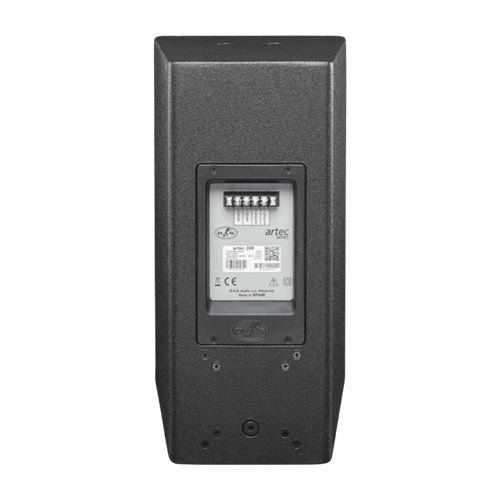

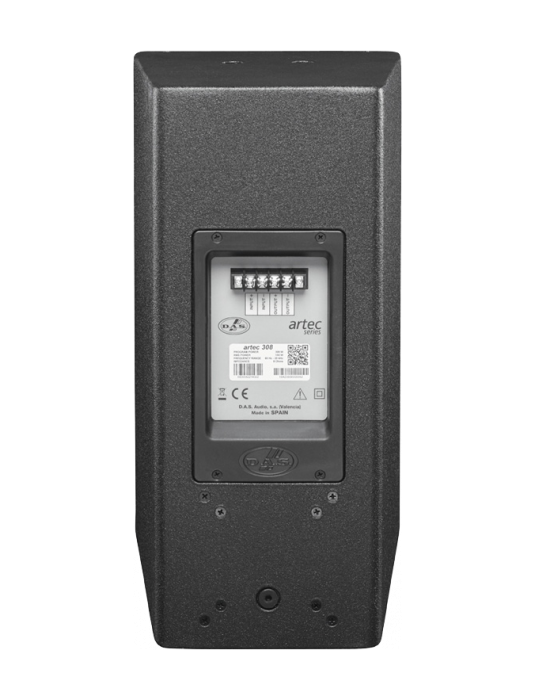

| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 290 mm (11,4 in) |
| Dimensions ( H x W x D ) | 450 x 245 x 290 mm |
| 17,7 x 9,7 x 11,4 in | |
| Net Weight | 10,0 kg ( 22,1 lb ) |
| Components | |
| LF Driver | 8GU |
| HF Driver | M-26 |
| Horn/Waveguide | BCT-96 |
