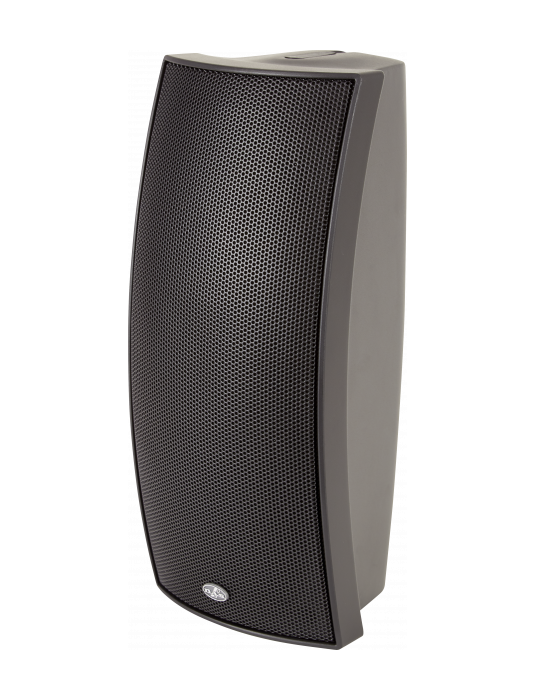

The Arco-24T incorporates two 4″ woofers with weather resistant polypropylene cones. High frequency reproduction is handled by a 25 mm neodymium dome tweeter for brilliant highs and balanced performance. An Overload Safety Circuit protects the speakers from damage in case of overpowering.
The «T» versions include a multi tap transformer with variable settings including an 8 ohm bypass position. Optional IP 54 kits for outdoor use are available.
| Performance | |
| Frequency Range (-10 dB) | 65 Hz – 22 kHz |
| Horizontal Coverage (-6 dB) | 80º |
| Vertical Coverage | 70º |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 5 W-10 W-15 W |
| Transformer Taps 100 V | 10 W-20 W-30 W |
| RMS Power Handling | 100 W |
| Peak Power Handling | 400 W |
| On-axis Sensitivity 1W/1 m | 89 dB SPL |
| Maximum Peak SPL at 1 m | 115 dB |
| Recommended Amplifier | INTEGRAL-A402 |
| INTEGRAL-A404 | |
| Recommended Processor | DSP-226 |
| Connectors | |

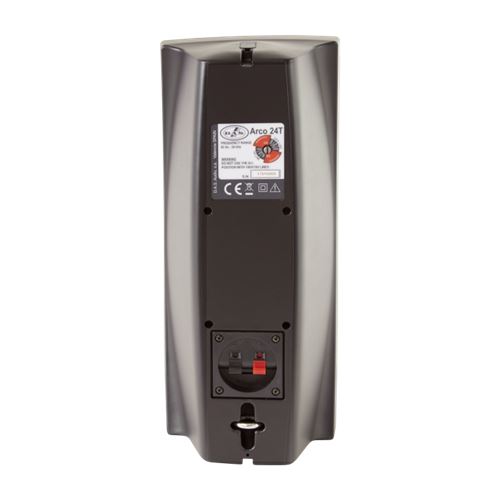

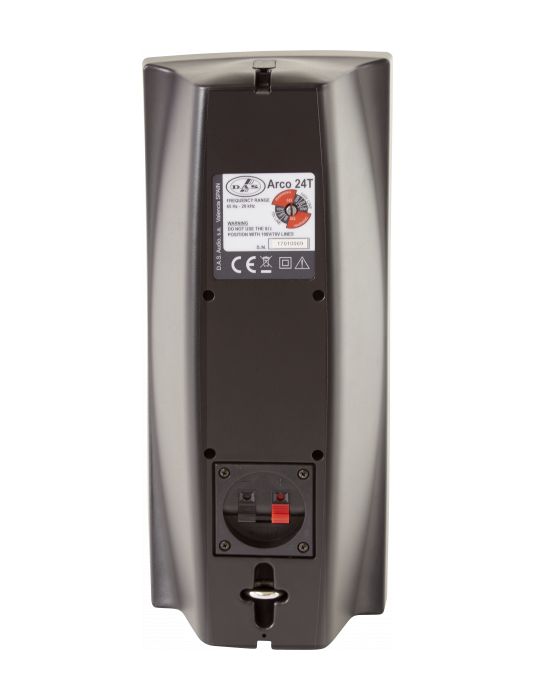

| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Construction | High Impact ABS |
| Enclosure Geometry | Trapezoidal |
| Color | Black |
| Depth | 140 mm (5,5 in) |
| Dimensions ( H x W x D ) | 340 x 145 x 140 mm |
| 13,4 x 5,7 x 5,5 in | |
| Net Weight | 2,6 kg ( 5,7 lb ) |
| Components | |
| LF Driver | 4G4 |
| HF Driver | TWT-24 |
