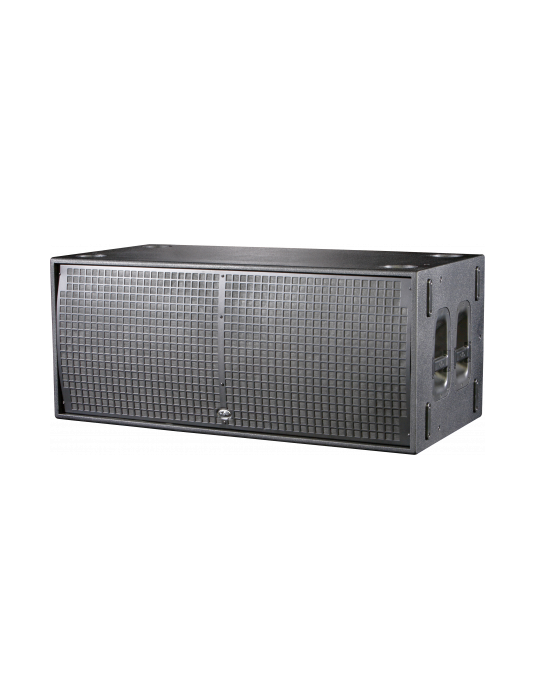

The LX-218C is an externally powered, high-performance subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion.
The LX-218C incorporates the 18LXN long excursion cone transducer. The LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion and power compression.
The subwoofer can be stacked vertically on the PL-218CS dolly facilitating transport in touring applications of up to 3 units. For the transport of individual units, an optional rear casters kit (KIT-W100) is available.
The LX-218C can be upgraded to the “R” version by way of the optional rigging hardware kit (KITR-LX218C) which includes the captive rigging system, fasteners and 8 mm quick release safety pins needed for one cabinet.
| Performance | |
| Frequency Range (-10 dB) | 28 Hz – 100 Hz |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 2000 W |
| Peak Power Handling | 8000 W |
| On-axis Sensitivity 1W/1 m | 103 dB SPL |
| Maximum Peak SPL at 1 m | 142 dB |
| Recommended Amplifier | DX-100-230 |
| DX-100-115 | |
| Recommended Processor | DSP-4080 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL8 |
| Audio Output Connector | 1 x speakON NL8 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 635 mm (25,0 in) |
| Dimensions ( H x W x D ) | 555 x 1.285 x 635 mm |
| 21,9 x 50,6 x 25,0 in | |
| Net Weight | 78,5 kg ( 173,1 lb ) |
| Components | |
| LF Driver | 18LXN |
