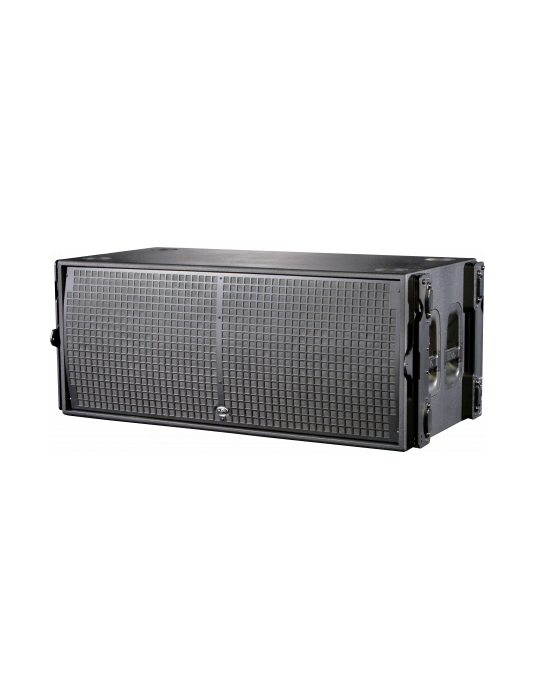

The LX-218CA-R is a powered subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The LX-218CA-R incorporates the 18LXN long excursion cone transducer. The DAS developed 18LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion and power compression. The LX-218CA-R include rigging hardware.
The subwoofer can be stacked vertically on the PL-218CS dolly facilitating transport in touring applications of up to 3 units. For the transport of individual units, an optional rear casters kit (KIT-W100) is available. The LX-218CA can be upgraded to the »R» version by way of the optional rigging hardware kit (KITR-LX218C) which includes the captive rigging system, fasteners and 8 mm quick release safety pins needed for one cabinet.
| Performance | |
| Frequency Range (-10 dB) | 28 Hz – 100 Hz |
| Maximum Peak SPL at 1 m | 142 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 2400 W |
| Nominal Amplifier Power (peak) | 4800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 3.1 A/6.2 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | Captive Rigging System |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 555 x 1.355 x 700 mm |
| 21,9 x 53,3 x 27,6 in | |
| Net Weight | 102,0 kg ( 224,9 lb ) |
| Components | |
| LF Driver | 18LXN |
