The LX-118A makes use of the 18LXN neodymium loudspeaker equipped with a 4» voice coil. Improved voice coil materials, magnet circuit and surround design provide high power handling, low power compression and low distortion. The LX-118A offers a frequency range of 33 Hz – 120 Hz yielding a maximum peak SPL of 135 dB.

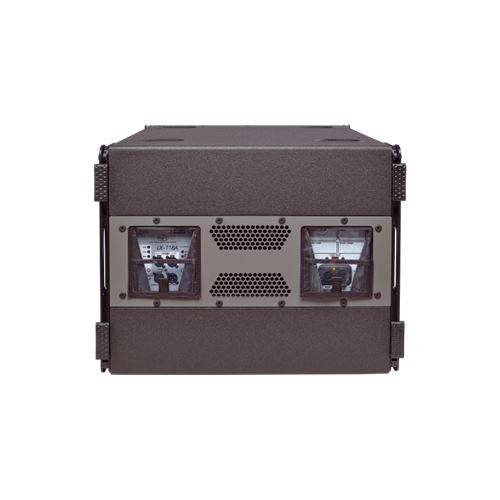

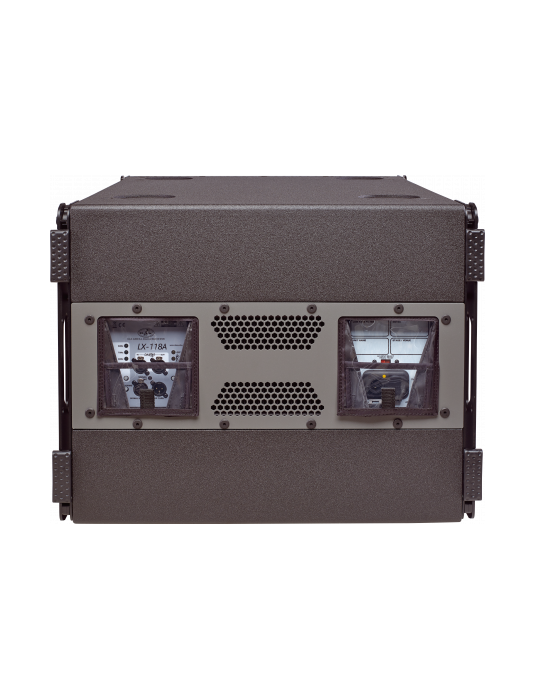

The system incorporates a 1200 Wcontinuous, universal mains, Class D switching amplifier. Remote monitoring and control is provided by way of DASnetTM, the audio management application for DAS powered cabinets and processors. A family of Low Pass filters can be selected using  DASnetTM or the controls on the amplifier´s rear panel. For each selection a cardioid preset is also available.

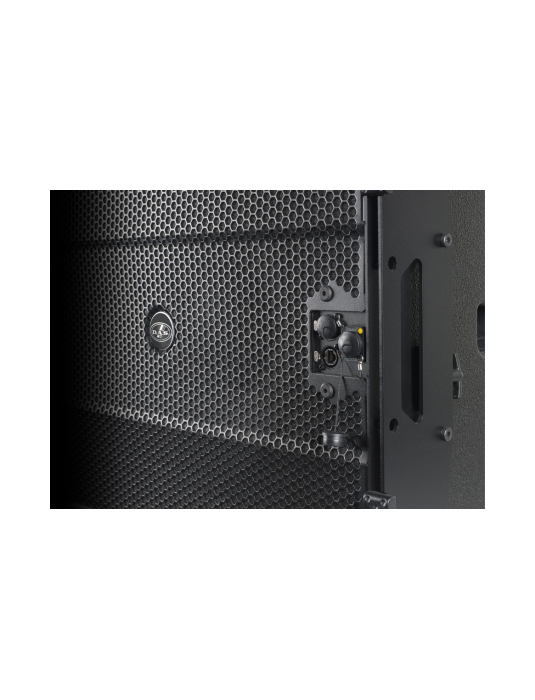

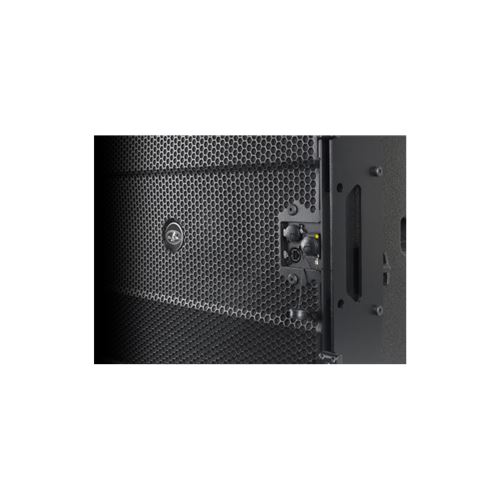

The enclosure is constructed using Birch plywood and makes use of extensive bracing to  eliminate resonances. The woodwork is finished with the robust DAS ISO-flex protective coating for durability. The captive rigging hardware allows the AERO-20A to be flown directly below the subwoofer unit without the need for adaptors. Front located connectors (power, audio and DASnetTM) allow easy installation when using cardioid configurations.
