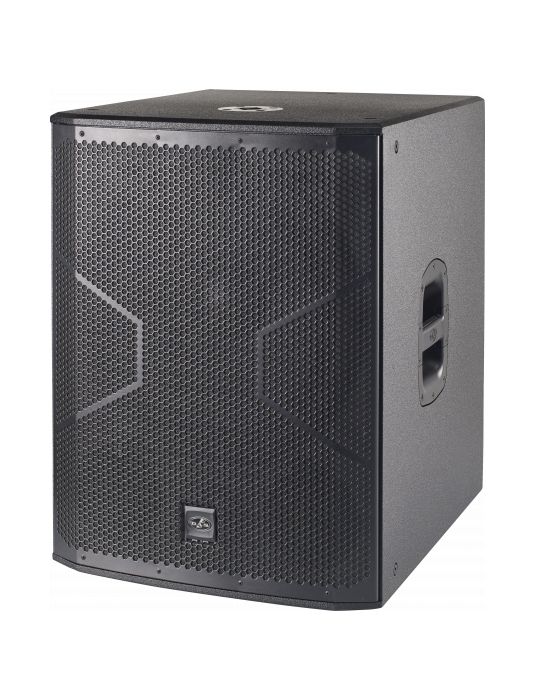

The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursion. Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.
The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.
| Performance | |
| Frequency Range (-10 dB) | 45 Hz – 138 Hz |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 600 W |
| Peak Power Handling | 2400 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 134 dB |
| Recommended Amplifier | PA-1500 |
| Recommended Processor | DSP-226 |
| Connectors | |

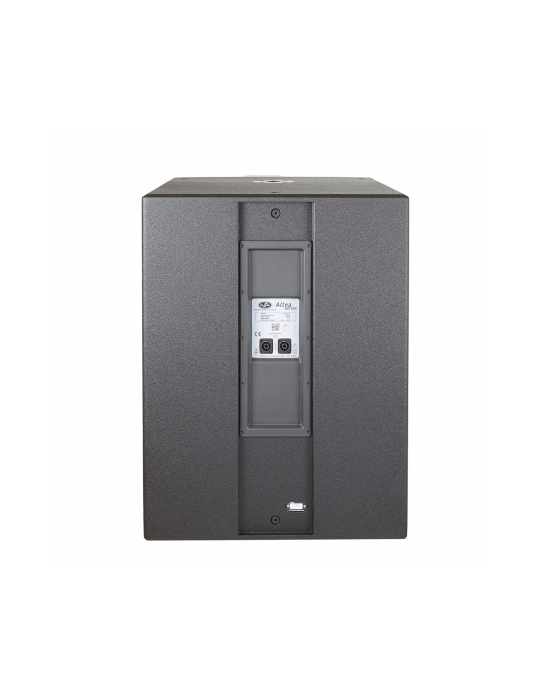

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 650 mm (25,6 in) |
| Dimensions ( H x W x D ) | 720 x 545 x 650 mm |
| 28,4 x 21,5 x 25,6 in | |
| Net Weight | 40,5 kg ( 89,3 lb ) |
| Components | |
| LF Driver | 18FW |
